1-171825-2 | AMP

Pin header, 12 pole, pitch 2.5 mm, straight, natural, 1-171825-2

Order No.: 37P1141
EAN: 4099889952018
MPN:
1-171825-2
AMP

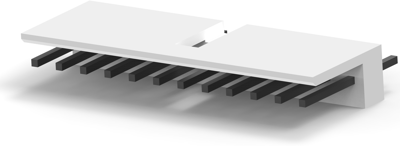

1-171825-2 AMP PCB Connection Systems Image 1

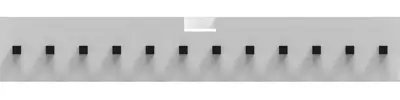

1-171825-2 AMP PCB Connection Systems Image 2

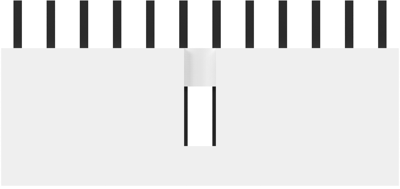

1-171825-2 AMP PCB Connection Systems Image 3

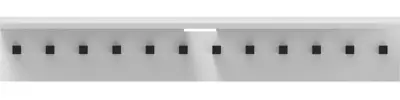

1-171825-2 AMP PCB Connection Systems Image 4

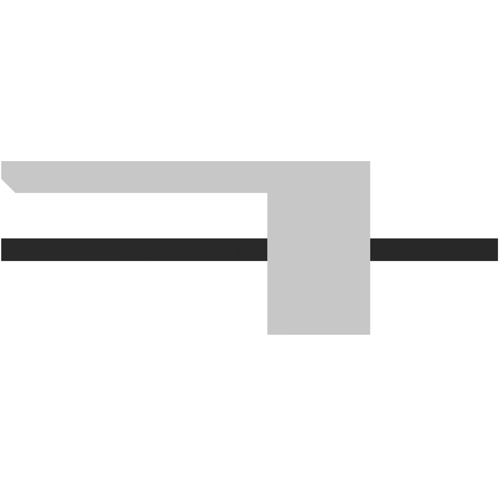

1-171825-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.9401 € *
Available: 0 pcs.
Available in 5 Days: 5,000 pcs.
Leadtime: 1 Week **
Total Price:
0.94 € *
Price list
Quantity
Price per unit*
95 pcs.
0.9401 €
500 pcs.
0.9163 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB Connection System, 1-171825-2, AMP

Wire-to-Board, Printed Circuit Board, Shrouded, Vertical, 12 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Brass
  • Housing Material: 6/6 Nylon
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 12
  • Operating Temperature Range: -20 – 95 °C [-4 – 203 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 5 mm
  • PCB Mount Retention: With
  • Sealable: No
Technical specifications
Connection PCB connection
Connection plating tin-plated
Number of rows 1
Version pin header
Additional parts equipped
Breakable No
Colour natural
Contact type pin
contact surface tin-plated
Rated voltage 250 V
Rated current 5 A
Orientation straight
Pin number 12 pole
Grid 2.5 mm
Type of locking Yes
Logistics
Country of origin US
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
