1-171196-0 | AMP

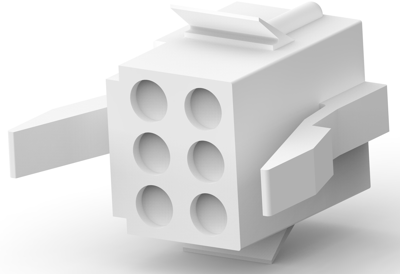

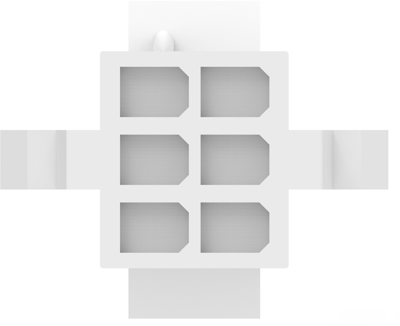

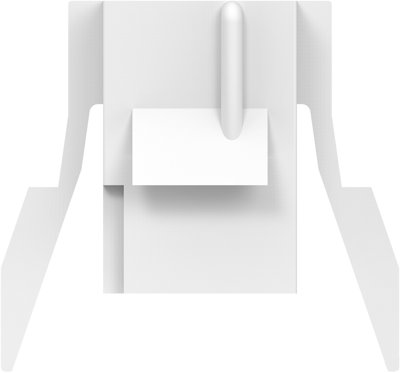

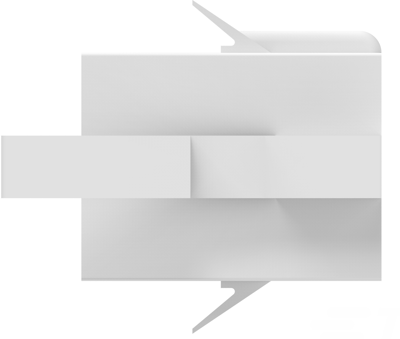

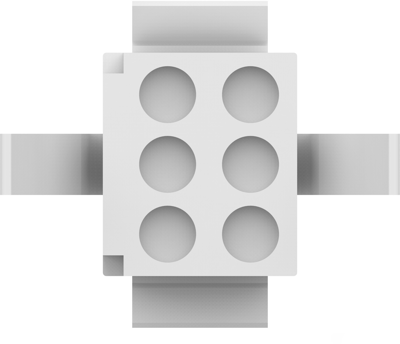

Plug housing, 6 pole, pitch 5.13 mm, straight, natural, 1-171196-0
Unit Price (€ / pc.)
0.9163 € *
Standard delivery time from the manufacturer is: 15 Weeks
Total Price:
0.92 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9163 €
10 pcs.
0.8449 €
25 pcs.
0.7973 €
50 pcs.
0.7259 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 1-171196-0, AMP
Wire-to-Panel, Wire-to-Wire, Wire & Cable, 6 Position
Technical Data
- Connector Mounting Type: Panel Mount
- Contact Type: Male
- Housing Material: Nylon
- Housing Color: natural
- Number of positions: 6
- Operating Temperature Range: 0 – 105 °C [32 – 221 °F]
- Centerline (Pitch): 5.1 mm
- Row-to-Row Spacing: 6.1 mm [0.24 in]
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug housing | |
| Number of rows | 2 | |
| Connection | crimp connection | |
| Contact type | socket | |
| Grid | 5.13 mm | |
| Pin number | 6 pole | |
| Rated voltage | 250 V | |
| Orientation | straight | |
| Type of locking | Yes | |
| Colour | natural |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389091 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
