1-1658527-5 | AMP

Socket housing, 50 pole, pitch 2.54 mm, straight, blue, 1-1658527-5

Order No.: 36P5423
EAN: 4099889943351
MPN:
1-1658527-5
Series: AMP-LATCH

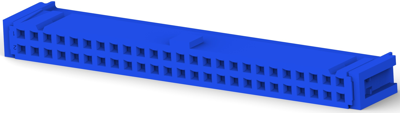

1-1658527-5 AMP PCB Connection Systems Image 1

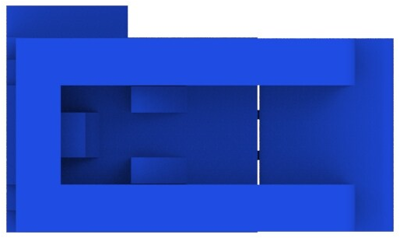

1-1658527-5 AMP PCB Connection Systems Image 2

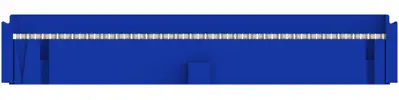

1-1658527-5 AMP PCB Connection Systems Image 3
1-1658527-5 AMP PCB Connection Systems Image 4
1-1658527-5 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
5.8667 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
5,866.70 € *
*incl. VAT plus shipping costs
Subject to prior sale
1000 pcs.
5.8667 €

PCB Connection System, 1-1658527-5, AMP

Wire-to-Board, Wire & Cable, 50 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Housing Color: blue
  • Number of positions: 50
  • Operating Temperature Range: -55 – 125 °C [-67 – 257 °F]
  • Rated current: 1 A
  • Centerline (Pitch): 2.54 mm
  • Row-to-Row Spacing: 2.54 mm [0.1 in]
Technical specifications
Colour blue
contact surface gold-plated
Rated current 1 A
Grid 2.54 mm
Connection plating gold-plated
Pin number 50 pole
Version socket housing
Additional parts equipped
Orientation straight
Connection IDC connection
Contact type socket
Number of rows 2
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
