1-1658526-9 | AMP

Socket header, 34 pole, pitch 2.54 mm, straight, blue, 1-1658526-9

Order No.: 56F6360
EAN: 4099891001353
MPN:
1-1658526-9
609-3441LF
Series: AMP-LATCH

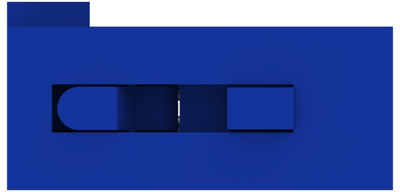

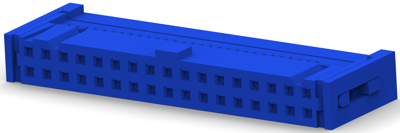

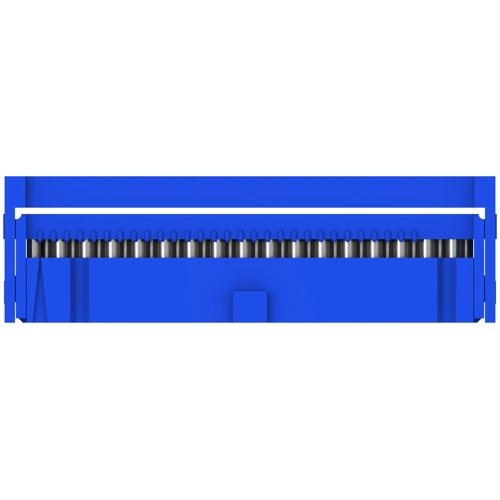

1-1658526-9 AMP PCB Connection Systems Image 1
1-1658526-9 AMP PCB Connection Systems Image 2
1-1658526-9 AMP PCB Connection Systems Image 3
1-1658526-9 AMP PCB Connection Systems Image 4
1-1658526-9 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
14.2086 € *
Standard delivery time from the manufacturer is: 15 Weeks
Total Price:
15,913.63 € *
*incl. VAT plus shipping costs
Subject to prior sale
1120 pcs.
14.2086 €

Insulation displacement connectors, premium series, type TE Connectivity/Ansley ..-0165../..-176.

Ribbon cable connector, patented tubular contacts with 2.54 x 2.54 mm grid; Housing: glass-fiber-reinforced thermoplastic to 94 V-0. Color: blue. Contacts: beryllium copper gold-plated on nickel primer in the connecting area, in the mating area tinned on nickel primer. Operating current: 1.0 A. Dielectric strength: 500 V. Operating temperatures: –55 to +125 °C. Certifications: UL, CSA

Female connectors, type ..-165.

With center polarity mechanism and strain relief.

Type: 1–1658526–9, 34–pole, A 47.65, B 40.64 mm

Technical specifications
Colour blue
contact surface gold-plated
Rated current 1 A
Grid 2.54 mm
Connection plating tin-plated
Pin number 34 pole
Version socket header
Additional parts equipped
Orientation straight
Connection IDC connection
Contact type socket
Number of rows 2
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
