1-1586765-6 | AMP

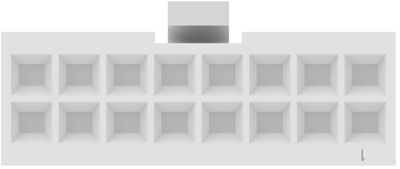

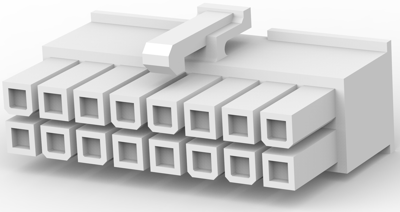

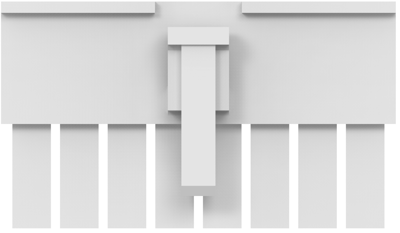

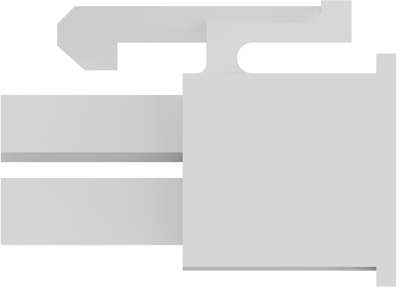

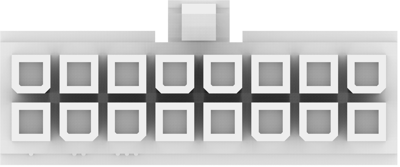

Socket header, 16 pole, pitch 4.2 mm, straight, white, 1-1586765-6
Order No.: 35P5465
EAN: 4099889938876
MPN:
1-1586765-6
Unit Price (€ / pc.)
0.4284 € *
Available in 5 Days: 25,400 pcs. - if ordered today
Total Price:
0.43 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4284 €
10 pcs.
0.4046 €
25 pcs.
0.3808 €
50 pcs.
0.3451 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 1-1586765-6, AMP
Wire-to-Board, Wire-to-Wire, Wire & Cable, 16 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: Polyamide
- Housing Color: white
- Number of positions: 16
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Centerline (Pitch): 4.2 mm
- Row-to-Row Spacing: 4.2 mm [0.165 in]
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket header | |
| Pin number | 16 pole | |
| Type of locking | Yes | |
| Rated voltage | 600 V | |
| Orientation | straight | |
| Contact type | socket | |
| Grid | 4.2 mm | |
| Number of rows | 2 | |
| Additional parts | unequipped | |
| Connection | crimp connection | |
| Colour | white |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389091 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
