1-1586765-0 | AMP

Socket header, 10 pole, pitch 4.2 mm, straight, white, 1-1586765-0

Order No.: 35P5438
EAN: 4099889938630
MPN:
1-1586765-0
Series: VAL-U-LOK

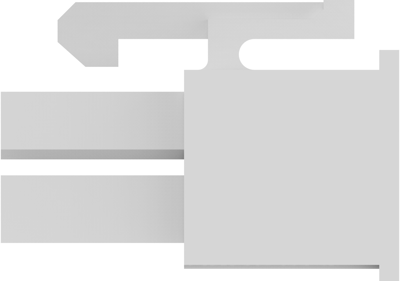

1-1586765-0 AMP PCB Connection Systems Image 1

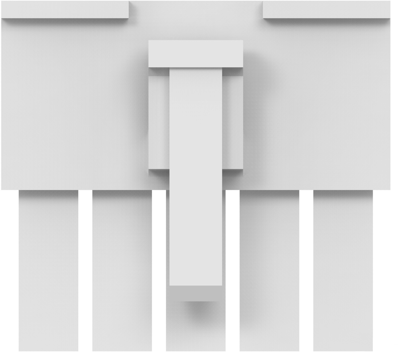

1-1586765-0 AMP PCB Connection Systems Image 2

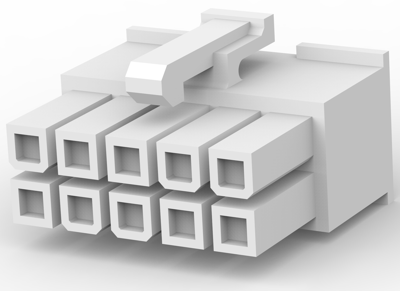

1-1586765-0 AMP PCB Connection Systems Image 3

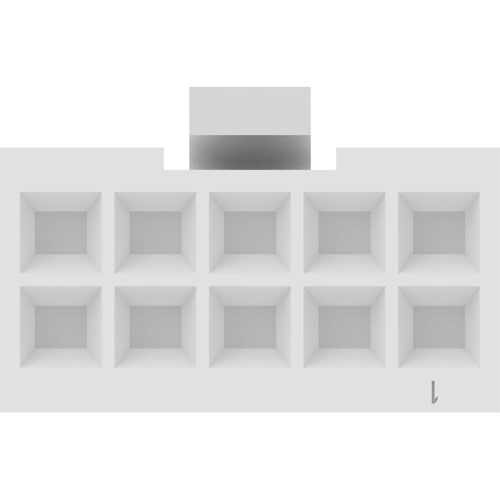

1-1586765-0 AMP PCB Connection Systems Image 4

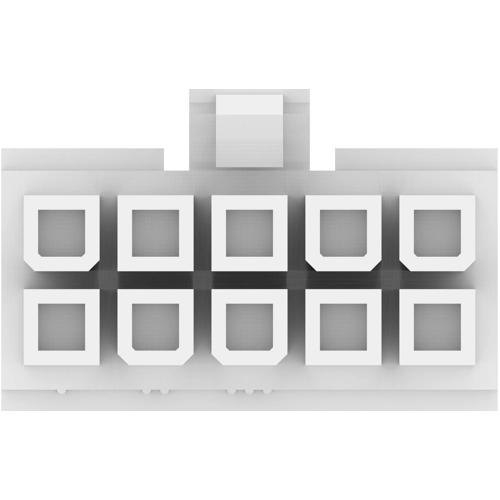

1-1586765-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.2892 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
1,445.85 € *
*incl. VAT plus shipping costs
Subject to prior sale
5000 pcs.
0.2892 €

PCB Connection System, 1-1586765-0, AMP

Wire-to-Board, Wire-to-Wire, Wire & Cable, 10 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Polyamide
  • Housing Color: white
  • Number of positions: 10
  • Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
  • Centerline (Pitch): 4.2 mm
  • Row-to-Row Spacing: 4.2 mm [0.165 in]
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Colour white
Type of locking Yes
Grid 4.2 mm
Pin number 10 pole
Version socket header
Additional parts unequipped
Orientation straight
Connection crimp connection
Contact type socket
Rated voltage 600 V
Number of rows 2
Logistics
Country of origin DE
Customs tariff number 85389091
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
