1-1586586-0 | AMP

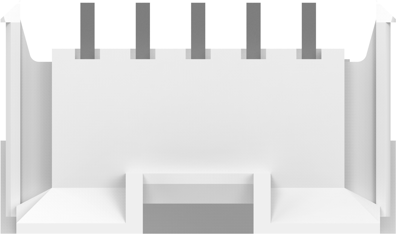

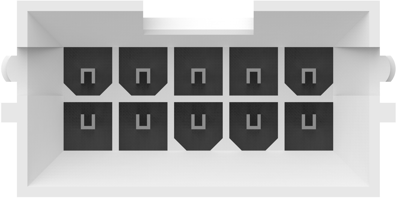

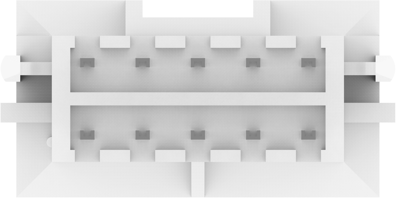

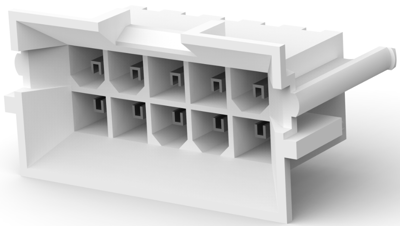

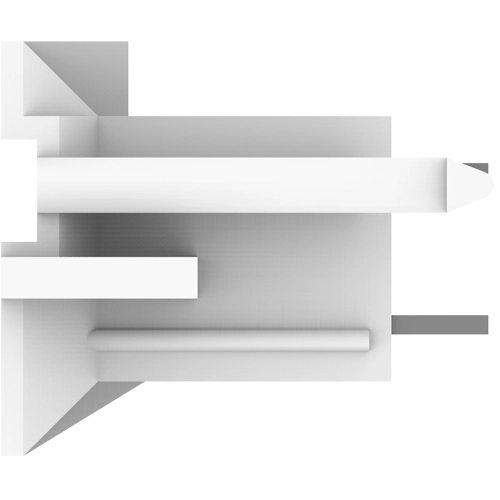

Pin header, 10 pole, pitch 4.2 mm, straight, natural, 1-1586586-0
Order No.: 71P0584
EAN: 4099891716516
MPN:
1-1586586-0
Unit Price (€ / pc.)
0.7497 € *
Available in 5 Days: 910 pcs. - if ordered today
Total Price:
389.84 € *
Price list
Quantity
Price per unit*
520 pcs.
0.7497 €
650 pcs.
0.7378 €
*incl. VAT plus shipping costs
Subject to prior sale
Soft shell connector, 1-1586586-0, AMP
The 1-1586586-0 is a soft shell low cost connector. This product is lead free to help promote a cleaner environment, with easy mate and unmate for positive latch design.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Contact type | pin | |
| Pin number | 10 pole | |
| Grid | 4.2 mm | |
| Connection | solder connection | |
| Orientation | straight | |
| Type of locking | Yes | |
| contact surface | tin-plated | |
| Connection plating | tin-plated | |
| Rated voltage | 600 V | |
| Rated current | 9 A | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Colour | natural |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
