1-1586585-2 | AMP

Pin header, 12 pole, pitch 4.2 mm, straight, natural, 1-1586585-2

Order No.: 71P0581
EAN: 4099891716486
MPN:
1-1586585-2

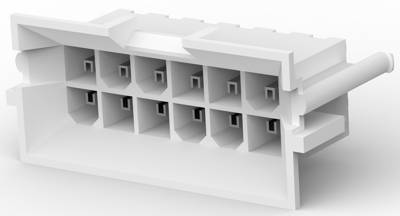

1-1586585-2 AMP PCB Connection Systems Image 1

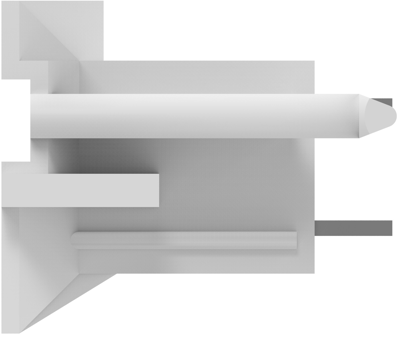

1-1586585-2 AMP PCB Connection Systems Image 2

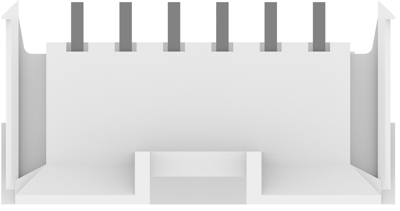

1-1586585-2 AMP PCB Connection Systems Image 3

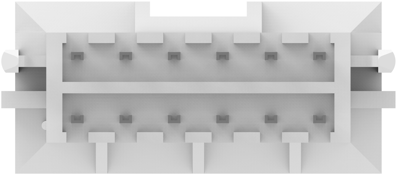

1-1586585-2 AMP PCB Connection Systems Image 4

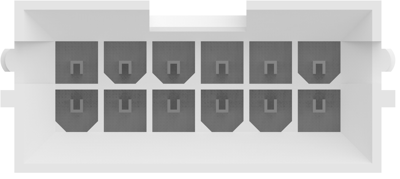

1-1586585-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.7973 € *
Available in 5 Days: 770 pcs. - if ordered today
Total Price:
350.81 € *
Price list
Quantity
Price per unit*
440 pcs.
0.7973 €
770 pcs.
0.7735 €
*incl. VAT plus shipping costs
Subject to prior sale

Soft shell connector, 1-1586585-2, AMP

The 1-1586585-2 is a soft shell low cost connector. This product is lead free to help promote a cleaner environment, with easy mate and unmate for positive latch design.

Technical specifications
Filter Property Value
Colour natural
Type of locking Yes
contact surface tin-plated
Rated current 9 A
Grid 4.2 mm
Connection plating tin-plated
Pin number 12 pole
Version pin header
Additional parts equipped
Orientation straight
Connection solder connection
Contact type pin
Rated voltage 600 V
Number of rows 2
Logistics
Property Value
Country of origin CN
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
