1-1586018-8 | AMP

Plug housing, 18 pole, pitch 4.2 mm, straight, white, 1-1586018-8

Order No.: 35P5470
EAN: 4099889938920
MPN:
1-1586018-8
Series: VAL-U-LOK

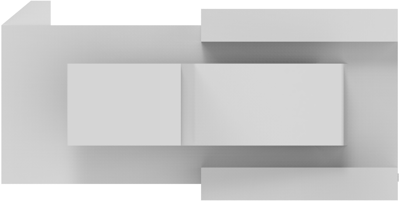

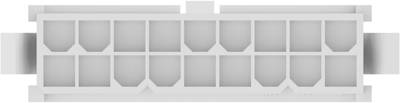

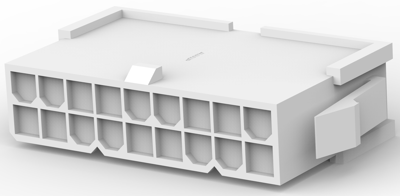

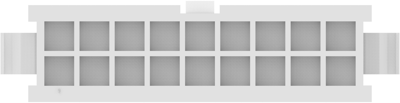

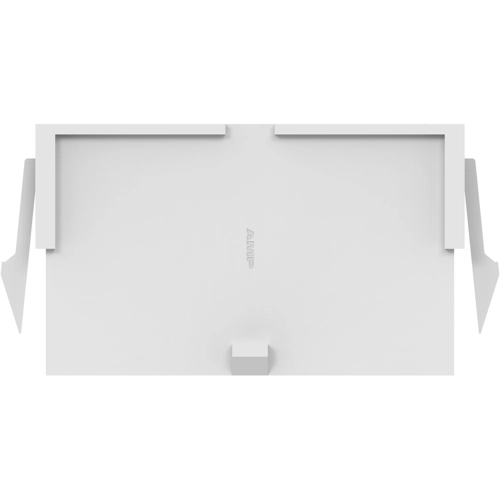

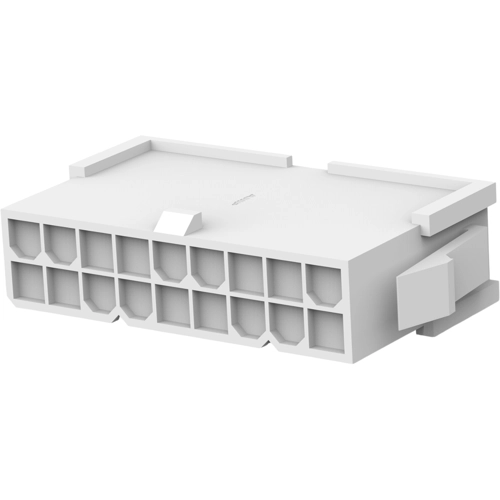

1-1586018-8 AMP PCB Connection Systems Image 1
1-1586018-8 AMP PCB Connection Systems Image 2
1-1586018-8 AMP PCB Connection Systems Image 3
1-1586018-8 AMP PCB Connection Systems Image 4
1-1586018-8 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.5950 € *
Available in 5 Days: 2,104 pcs. - if ordered today
Total Price:
0.60 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5950 €
10 pcs.
0.5236 €
50 pcs.
0.4641 €
100 pcs.
0.4046 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1-1586018-8, AMP

Wire-to-Panel, Wire-to-Wire, Wire & Cable, 18 Position

Technical Data

  • Connector Mounting Type: Panel Mount
  • Contact Type: Male
  • Housing Material: Nylon
  • Housing Color: white
  • Number of positions: 18
  • Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
  • Centerline (Pitch): 4.2 mm
  • Row-to-Row Spacing: 4.2 mm [0.165 in]
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Colour white
Type of locking Yes
Grid 4.2 mm
Pin number 18 pole
Version plug housing
Additional parts unequipped
Orientation straight
Connection crimp connection
Contact type pin
Rated voltage 600 V
Number of rows 2
Logistics
Country of origin DE
Customs tariff number 85472000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
