1-1586000-2 | AMP

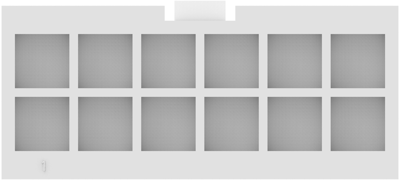

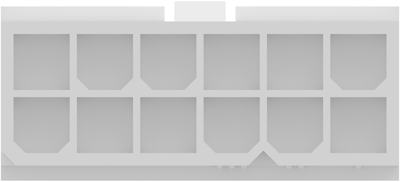

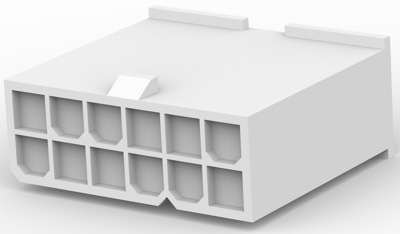

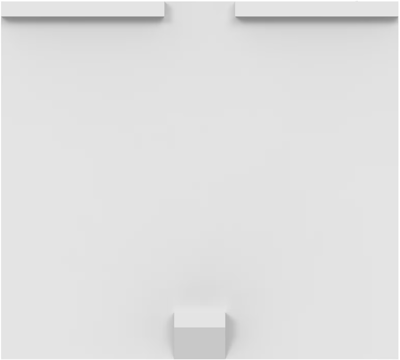

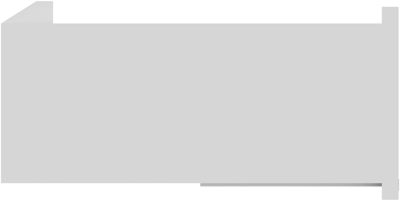

Plug housing, 12 pole, pitch 4.2 mm, straight, natural, 1-1586000-2
Unit Price (€ / pc.)
0.2594 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
1.30 € *
Price list
Quantity
Price per unit*
5 pcs.
0.2594 €
10 pcs.
0.2404 €
25 pcs.
0.2237 €
50 pcs.
0.2023 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable connectors, 2- to 24-pole, 4.2 mm grid, type TE Connectivity/AMP VAL-U-LOK.
4.2 mm grid, single- and dual-row; Housing: Nylon, flame retardant to UL 94 V-2. Contacts: tinned brass. Rated voltage: 600 VAC. Rated current: max. 9.0 A per cable. Insulation resistance: min. 1000 Mohm. Insertion force (per contact): 6.9 N. Certifications: UL, CSA.
Male connector housings, dual-row, bare, type ..-1586000.
Technical attributes (type, number of poles, dimension A): 1-1586000-2, 12-pole, A 26.4 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of rows | 2 | |
| Rated current | 9 A | |
| Contact type | pin | |
| Grid | 4.2 mm | |
| Pin number | 12 pole | |
| Orientation | straight | |
| Rated voltage | 600 V | |
| Additional parts | unequipped | |
| Type of locking | Yes | |
| Connection | crimp connection | |
| Colour | natural | |
| Version | plug housing |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85472000 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
