1-1489715-4 | AMP
Socket header, 6 pole, pitch 3 mm, straight, black, 1-1489715-4
Unit Price (€ / pc.)
17.6953 € *
Available in 5 Days: 2,150 pcs. - if ordered today
Total Price:
265.43 € *
Price list
Quantity
Price per unit*
15 pcs.
17.6953 €
30 pcs.
17.3502 €
*incl. VAT plus shipping costs
Subject to prior sale

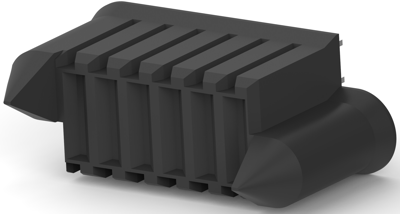

Socket header, 1-1489715-4, AMP
The 1-1489715-4 combines a high density power interface in a blind-mateable wire-toboard connector. The compact design is ideal for bringing power to small rack-mounted devices such as 1U computer servers and telecommunications switches.
Features
- High mating cycle life
- Compact size is ideal for distributed DC power applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket header | |
| Contact type | socket | |
| Pin number | 6 pole | |
| Grid | 3 mm | |
| Connection | press-fit | |
| Orientation | straight | |
| contact surface | gold-plated | |
| Connection plating | nickel-plated | |
| Rated voltage | 48 V | |
| Rated current | 16 A | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
