1-1445048-2 | AMP

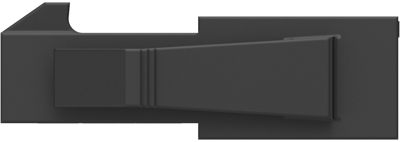

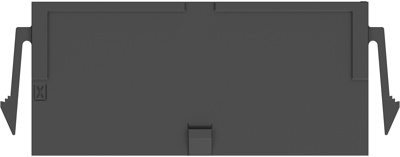

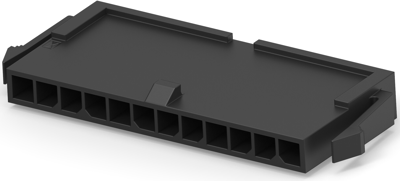

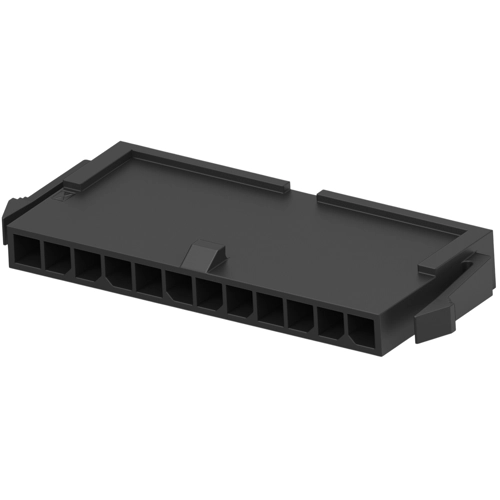

Plug housing, 12 pole, pitch 3 mm, straight, black, 1-1445048-2
Order No.: 34P9416
EAN: 4099889919073
MPN:
1-1445048-2
Unit Price (€ / pc.)
0.3094 € *
Available in 5 Days: 2,487 pcs. - if ordered today
PCB Connection System, 1-1445048-2, AMP
Wire-to-Panel, Wire-to-Wire, Wire & Cable, 12 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Male
- Housing Material: Nylon 66/6
- Housing Color: black
- Number of positions: 12
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Centerline (Pitch): 3 mm
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3 mm | |
| Contact type | pin | |
| Colour | black | |
| Number of rows | 1 | |
| Connection | crimp connection | |
| Pin number | 12 pole | |
| Orientation | straight | |
| Version | plug housing | |
| Type of locking | Yes | |
| Rated voltage | 250 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389091 |
| Country of origin | AT |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
