1-1376477-3 | AMP

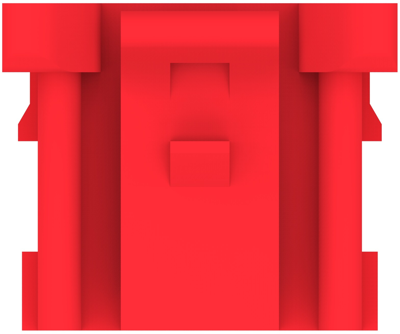

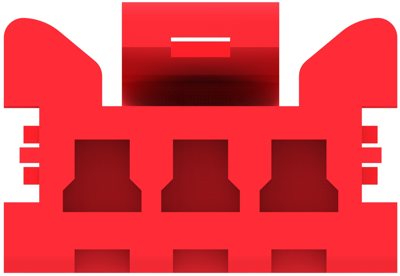

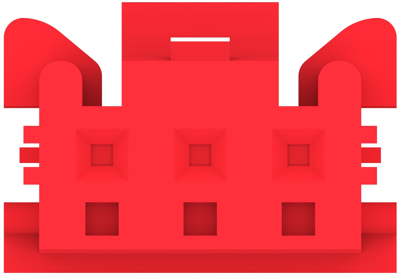

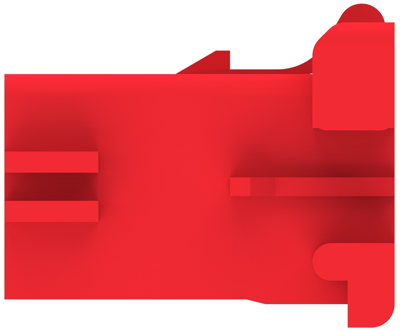

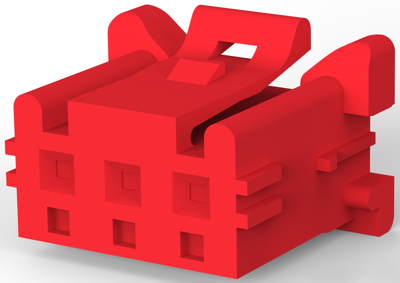

Plug housing, 3 pole, pitch 2.5 mm, straight, red, 1-1376477-3
Unit Price (€ / pc.)
0.1964 € *
Available in 5 Days: 18,660 pcs. - if ordered today
Total Price:
19.64 € *
Price list
Quantity
Price per unit*
100 pcs.
0.1964 €
250 pcs.
0.1809 €
500 pcs.
0.1678 €
1000 pcs.
0.1511 €
*incl. VAT plus shipping costs
Subject to prior sale
Plug housing, 1-1376477-3, AMP
Housing, Plug, Wire-to-Board, 3 Position, 2.5 mm Centerline, Crimp, 1 Row, Red, Mating retention.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.5 mm | |
| Contact type | pin | |
| Version | plug housing | |
| Rated current | 2.5 A | |
| Rated voltage | 50 V | |
| Orientation | straight | |
| Type of locking | Yes | |
| Additional parts | unequipped | |
| Number of rows | 1 | |
| Colour | red | |
| Pin number | 3 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
