1-1375820-6 | AMP

Socket housing, 16 pole, pitch 2.54 mm, straight, natural, 1-1375820-6

Order No.: 35P1576
EAN: 4099889926392
MPN:
1-1375820-6
Series: CST-100 II
AMP

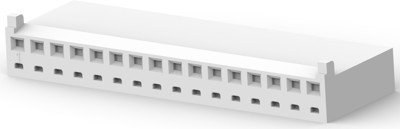

1-1375820-6 AMP PCB Connection Systems Image 1

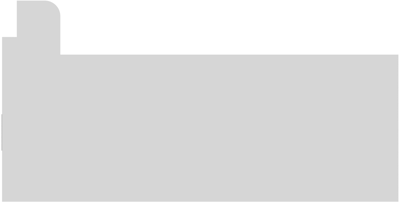

1-1375820-6 AMP PCB Connection Systems Image 2

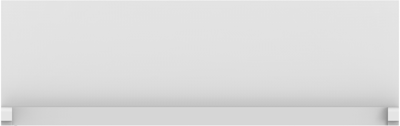

1-1375820-6 AMP PCB Connection Systems Image 3

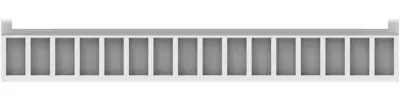

1-1375820-6 AMP PCB Connection Systems Image 4

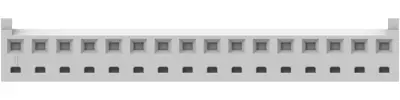

1-1375820-6 AMP PCB Connection Systems Image 5
Image may differ
Print
Key Specification:
Version socket housing
Contact type socket
Pin number 16 pole
Grid 2.54 mm
Connection crimp connection

Ordering Information:

not to be sold to private customers
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.5117 € *
Available in 5 Days: 974 pcs. - if ordered today
Total Price:
160.16 € *
*incl. VAT plus shipping costs
Subject to prior sale
313 pcs.
0.5117 €
Description
Technical specifications
Download
Logistics
Compliance

PCB Connection System, 1-1375820-6, AMP

Wire-to-Wire, Wire & Cable, 16 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon - GF
  • Housing Color: natural
  • Number of positions: 16
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 7 A
  • Centerline (Pitch): 2.54 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Grid 2.54 mm
Contact type socket
Additional parts unequipped
Colour natural
Rated current 7 A
Number of rows 1
Connection crimp connection
Pin number 16 pole
Orientation straight
Version socket housing
Type of locking Yes
Rated voltage 250 V
Articles of same specification 0
Logistics
Customs tariff number 85472000
Country of origin DE
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
