1-1318115-3 | AMP

Plug housing, 6 pole, pitch 2.5 mm, straight, black, 1-1318115-3

Order No.: 38P6944
EAN: 4099889974065
MPN:
1-1318115-3
Series: DYNAMIC

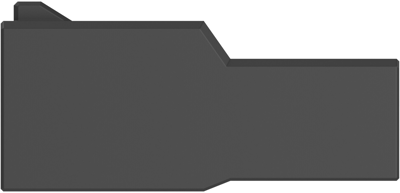

1-1318115-3 AMP PCB Connection Systems Image 1

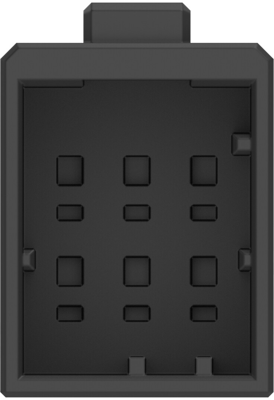

1-1318115-3 AMP PCB Connection Systems Image 2

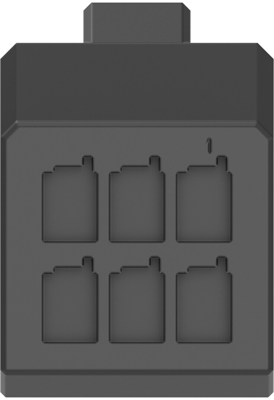

1-1318115-3 AMP PCB Connection Systems Image 3

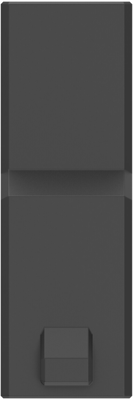

1-1318115-3 AMP PCB Connection Systems Image 4

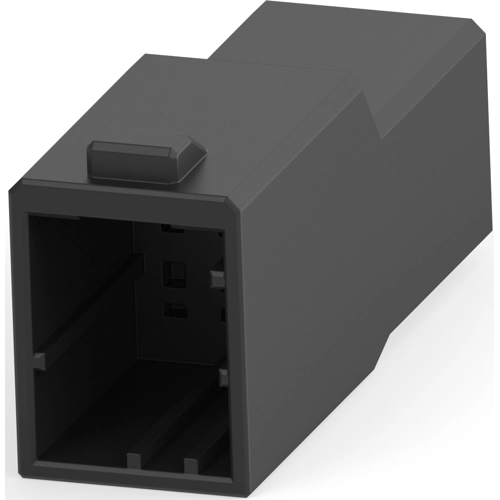

1-1318115-3 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.1186 € *
Available in 5 Days: 11,260 pcs. - if ordered today
Total Price:
1.12 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.1186 €

PCB Connection System, 1-1318115-3, AMP

Wire-to-Wire, Wire & Cable, 6 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Male
  • Housing Material: Polyester GF
  • Housing Color: black
  • Number of positions: 6
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Centerline (Pitch): 2.5 mm
  • Row-to-Row Spacing: 3.75 mm [0.147 in]
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Filter Property Value
Colour black
Type of locking Yes
Grid 2.5 mm
Pin number 6 pole
Version plug housing
Additional parts unequipped
Orientation straight
Connection crimp connection
Contact type pin
Rated voltage 250 V
Number of rows 2
Logistics
Property Value
Country of origin CZ
Customs tariff number 85472000
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
