1-1123824-1 | AMP

Pin header, 1 pole, straight, natural, 1-1123824-1

Order No.: 34P7210
EAN: 4099889914429
MPN:
1-1123824-1
Series: Economy Power

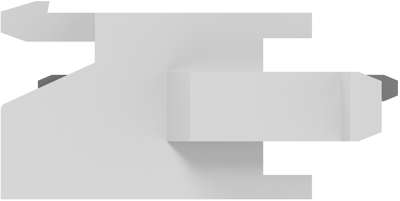

1-1123824-1 AMP PCB Connection Systems Image 1

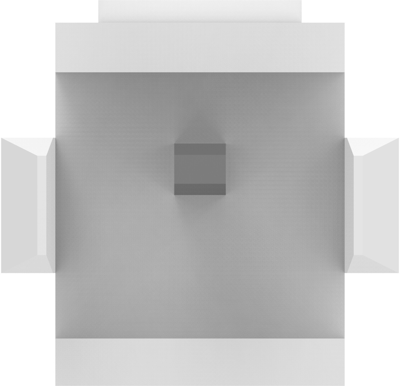

1-1123824-1 AMP PCB Connection Systems Image 2

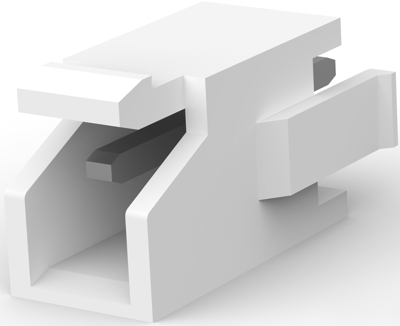

1-1123824-1 AMP PCB Connection Systems Image 3

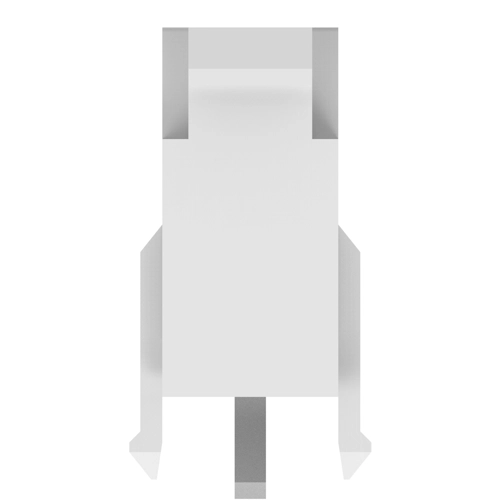

1-1123824-1 AMP PCB Connection Systems Image 4
1-1123824-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.3332 € *
Available in 5 Days: 25,740 pcs. - if ordered today
Total Price:
0.67 € *
Price list
Quantity
Price per unit*
2 pcs.
0.3332 €
50 pcs.
0.2975 €
100 pcs.
0.2618 €
500 pcs.
0.2225 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1-1123824-1, AMP

Wire-to-Board, Printed Circuit Board, Unshrouded, Vertical, 1 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Brass
  • Housing Material: Nylon 66
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 1
  • Operating Temperature Range: -25 – 105 °C [-13 – 221 °F]
  • Rated current: 8 A
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Colour natural
Type of locking Yes
contact surface tin-plated
Rated current 8 A
Connection plating tin-plated
Pin number 1 pole
Version pin header
Additional parts equipped
Orientation straight
Connection PCB connection
Contact type pin
Rated voltage 250 V
Number of rows 1
Logistics
Country of origin CN
Customs tariff number 85369001
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
