1-1123722-9 | AMP

Plug housing, 9 pole, pitch 3.96 mm, straight, natural, 1-1123722-9

Order No.: 34P7238
EAN: 4099889914702
MPN:
1-1123722-9
Series: Economy Power

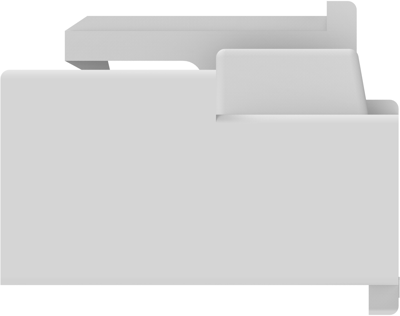

1-1123722-9 AMP PCB Connection Systems Image 1

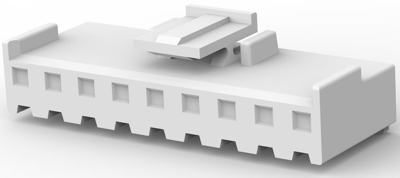

1-1123722-9 AMP PCB Connection Systems Image 2

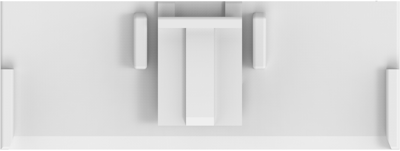

1-1123722-9 AMP PCB Connection Systems Image 3

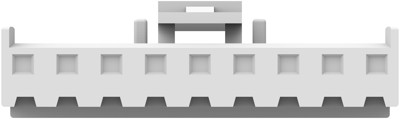

1-1123722-9 AMP PCB Connection Systems Image 4

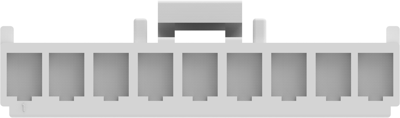

1-1123722-9 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.3213 € *
Available in 5 Days: 3,600 pcs. - if ordered today
Total Price:
1.61 € *
*incl. VAT plus shipping costs
Subject to prior sale
5 pcs.
0.3213 €

PCB Connection System, 1-1123722-9, AMP

Wire-to-Board, Wire & Cable, 9 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Female
  • Housing Material: Nylon 66
  • Housing Color: natural
  • Number of positions: 9
  • Operating Temperature Range: -25 – 105 °C [-13 – 221 °F]
  • Insulation Resistance: 1000 MΩ
  • Centerline (Pitch): 3.96 mm
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Colour natural
Type of locking Yes
Rated current 8 A
Grid 3.96 mm
Pin number 9 pole
Version plug housing
Orientation straight
Connection crimp connection
Contact type socket
Rated voltage 250 V
Number of rows 1
Logistics
Country of origin DE
Customs tariff number 85472000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
