1-1123722-7 | AMP

Plug housing, 7 pole, pitch 3.96 mm, straight, natural, 1-1123722-7

Order No.: 34P7236
EAN: 4099889914689
MPN:
1-1123722-7
Series: Economy Power

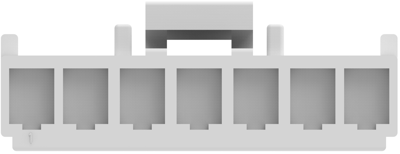

1-1123722-7 AMP PCB Connection Systems Image 1

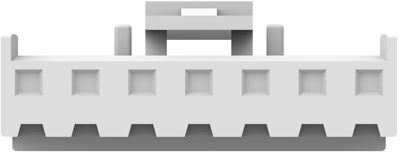

1-1123722-7 AMP PCB Connection Systems Image 2

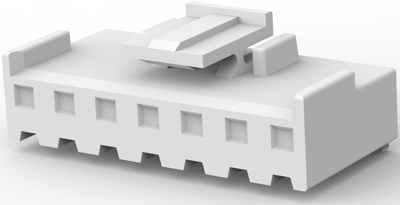

1-1123722-7 AMP PCB Connection Systems Image 3

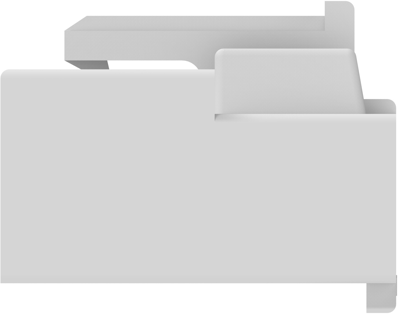

1-1123722-7 AMP PCB Connection Systems Image 4

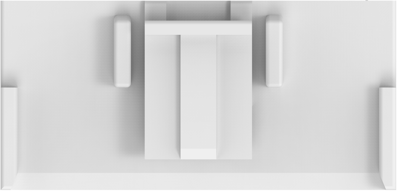

1-1123722-7 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.3094 € *
Available in 5 Days: 11,450 pcs. - if ordered today
Total Price:
0.62 € *
Price list
Quantity
Price per unit*
2 pcs.
0.3094 €
50 pcs.
0.2713 €
100 pcs.
0.2392 €
500 pcs.
0.2035 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1-1123722-7, AMP

Wire-to-Board, Wire & Cable, 7 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Female
  • Housing Material: Nylon 66
  • Housing Color: natural
  • Number of positions: 7
  • Operating Temperature Range: -25 – 105 °C [-13 – 221 °F]
  • Insulation Resistance: 1000 MΩ
  • Centerline (Pitch): 3.96 mm
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Number of rows 1
Grid 3.96 mm
Orientation straight
Pin number 7 pole
Connection crimp connection
Type of locking Yes
Colour natural
Rated current 8 A
Contact type socket
Version plug housing
Rated voltage 250 V
Logistics
Customs tariff number 85472000
Country of origin PL
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
