1-1123722-6 | AMP

Plug housing, 6 pole, pitch 3.96 mm, straight, natural, 1-1123722-6

Order No.: 34P7234
EAN: 4099889914665
MPN:
1-1123722-6
Series: Economy Power

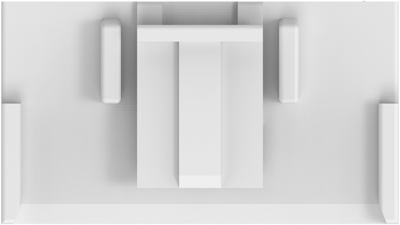

1-1123722-6 AMP PCB Connection Systems Image 1

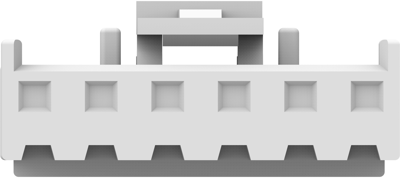

1-1123722-6 AMP PCB Connection Systems Image 2

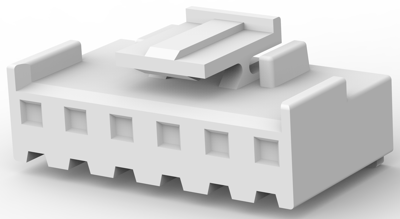

1-1123722-6 AMP PCB Connection Systems Image 3

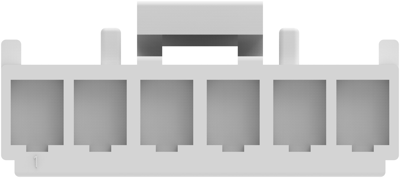

1-1123722-6 AMP PCB Connection Systems Image 4

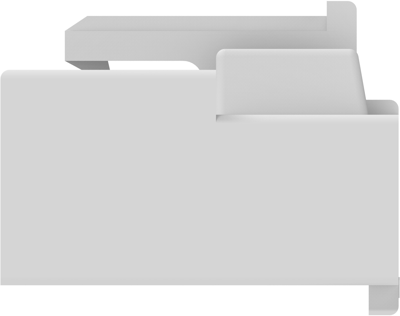

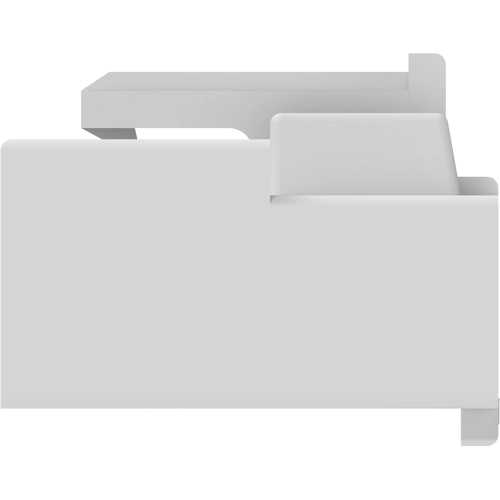

1-1123722-6 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.2832 € *
Available in 5 Days: 28,288 pcs. - if ordered today
Total Price:
1.42 € *
Price list
Quantity
Price per unit*
5 pcs.
0.2832 €
100 pcs.
0.2487 €
250 pcs.
0.2190 €
500 pcs.
0.1856 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1-1123722-6, AMP

Wire-to-Board, Wire & Cable, 6 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Female
  • Housing Material: Nylon 66
  • Housing Color: natural
  • Number of positions: 6
  • Operating Temperature Range: -25 – 105 °C [-13 – 221 °F]
  • Insulation Resistance: 1000 MΩ
  • Centerline (Pitch): 3.96 mm
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Colour natural
Type of locking Yes
Rated current 8 A
Grid 3.96 mm
Pin number 6 pole
Version plug housing
Orientation straight
Connection crimp connection
Contact type socket
Rated voltage 250 V
Number of rows 1
Logistics
Country of origin PL
Customs tariff number 85472000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
