1-111506-8 | AMP

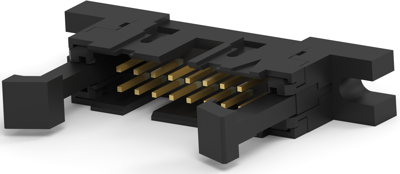

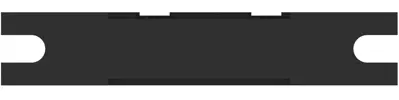

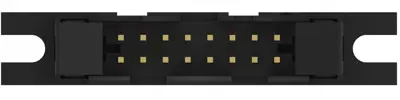

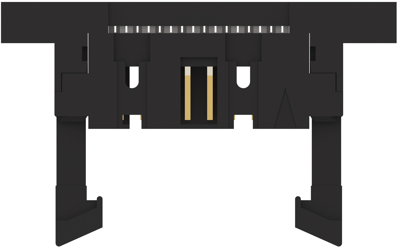

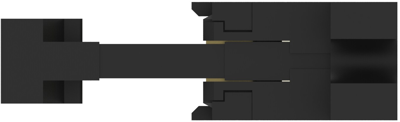

Pin header, 16 pole, pitch 2.54 mm, straight, black, 1-111506-8
Unit Price (€ / pc.)
19.0400 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
19.04 € *
Price list
Quantity
Price per unit*
1 pcs.
19.0400 €
10 pcs.
17.6834 €
25 pcs.
16.5053 €
50 pcs.
15.0059 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 1-111506-8, AMP
Wire-to-Wire, Wire & Cable, 16 Position
Technical Data
- Connector Mounting Type: Panel Mount
- Contact Type: Male
- Contact Base Material: Phosphor Bronze
- Housing Material: Thermoplastic
- Housing Color: black
- Number of positions: 16
- Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
- Insulation Resistance: 5000 MΩ
- Centerline (Pitch): 2.54 mm
- Row-to-Row Spacing: 2 mm [0.1 in]
- PCB Mount Retention: Without
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| contact surface | tin-plated | |
| Connection plating | tin-plated | |
| Grid | 2.54 mm | |
| Contact type | pin | |
| Rated voltage | 250 V | |
| Type of locking | Yes | |
| Additional parts | equipped | |
| Orientation | straight | |
| Colour | black | |
| Rated current | 1 A | |
| Connection | IDC connection | |
| Pin number | 16 pole | |
| Number of rows | 2 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
