1-111382-8 | AMP

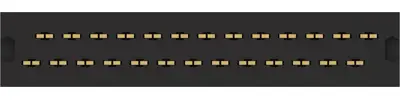

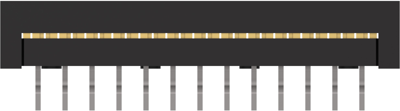

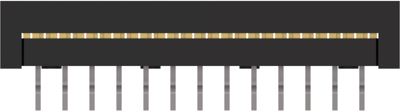

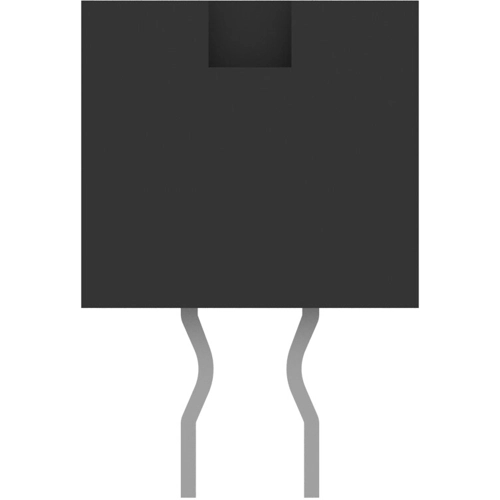

Pin header, 26 pole, pitch 2.54 mm, straight, black, 1-111382-8
Order No.: 36P7427
EAN: 4099889948370
MPN:
1-111382-8
Unit Price (€ / pc.)
3.1297 € *
Available in 5 Days: 975 pcs. - if ordered today
Total Price:
3.13 € *
Price list
Quantity
Price per unit*
1 pcs.
3.1297 €
10 pcs.
2.8798 €
50 pcs.
2.5823 €
100 pcs.
2.3324 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 1-111382-8, AMP
Wire-to-Board, Printed Circuit Board, Wire & Cable, Vertical, 26 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Phosphor Bronze
- Housing Color: black
- Orientation: straight
- Number of positions: 26
- Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
- Insulation Resistance: 5000 MΩ
- Centerline (Pitch): 2.54 mm
- Row-to-Row Spacing: 2 mm [0.1 in]
- PCB Mount Retention: With
- Contact Layout: Inline
Technical specifications
| Colour | black | |
| Type of locking | Yes | |
| contact surface | tin-plated | |
| Rated current | 1 A | |
| Grid | 2.54 mm | |
| Connection plating | tin-plated | |
| Pin number | 26 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated voltage | 250 V | |
| Number of rows | 2 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366930 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
