1-104893-0 | AMP

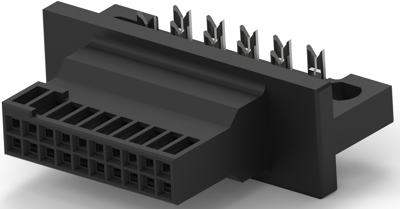

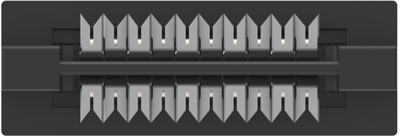

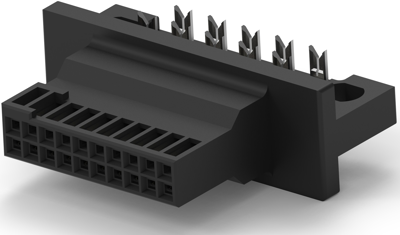

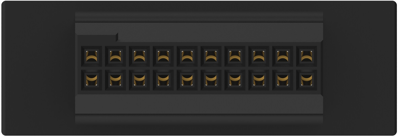

Socket header, 100 pole, pitch 1.27 mm, straight, black, 1-104893-0
Order No.: 37P5245
EAN: 4099889955347
MPN:
1-104893-0
Unit Price (€ / pc.)
36.3664 € *
Standard delivery time from the manufacturer is: 32 Weeks
Total Price:
36.37 € *
Price list
Quantity
Price per unit*
1 pcs.
36.3664 €
5 pcs.
34.4862 €
10 pcs.
32.2609 €
25 pcs.
29.4168 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 1-104893-0, AMP
Cable-to-Board, Wire & Cable, 100 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Contact Base Material: Phosphor Bronze
- Housing Material: LCP (Liquid Crystal Polymer)
- Housing Color: black
- Number of positions: 100
- Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
- Insulation Resistance: 5000 MΩ
- Centerline (Pitch): 1.27 mm
- Row-to-Row Spacing: 1.27 mm [0.05 in]
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 1.27 mm | |
| Contact type | socket | |
| Connection plating | gold-plated | |
| contact surface | gold-plated | |
| Version | socket header | |
| Rated current | 500 mA | |
| Rated voltage | 30 V | |
| Orientation | straight | |
| Type of locking | Yes | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Colour | black | |
| Pin number | 100 pole | |
| Connection | IDC connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | No |
| Substance description | Lead |
