1-104482-3 | AMP

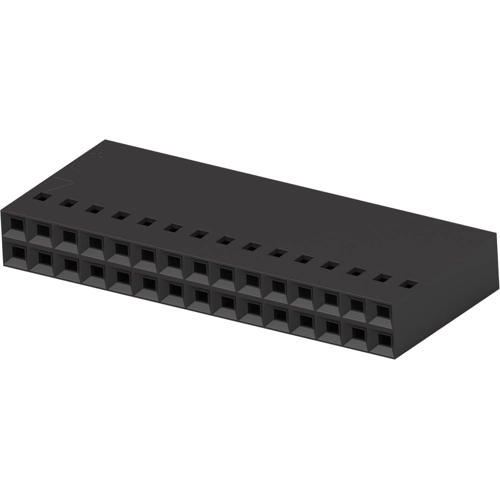

Socket housing, 30 pole, pitch 2.54 mm, straight, black, 1-104482-3
Unit Price (€ / pc.)
1.7850 € *
Available in 5 Days: 2,535 pcs. - if ordered today
Total Price:
1.79 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7850 €
10 pcs.
1.6303 €
50 pcs.
1.4637 €
100 pcs.
1.3209 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 1-104482-3, AMP
Wire-to-Board, Wire & Cable, 30 Position
Technical Data
- Contact Type: Female
- Housing Material: Thermoplastic
- Housing Color: black
- Number of positions: 30
- Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
- Insulation Resistance: 5000 MΩ
- Centerline (Pitch): 2.54 mm
- Row-to-Row Spacing: 2.54 mm [0.1 in]
- PCB Mount Retention: Without
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Rated current | 3 A | |
| Grid | 2.54 mm | |
| Pin number | 30 pole | |
| Version | socket housing | |
| Additional parts | unequipped | |
| Orientation | straight | |
| Connection | crimp connection | |
| Contact type | socket | |
| Rated voltage | 300 V | |
| Number of rows | 2 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
