1-104257-0 | AMP

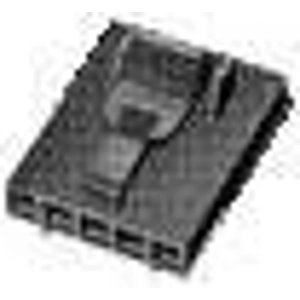

Socket housing, 11 pole, pitch 2.54 mm, straight, black, 1-104257-0
Unit Price (€ / pc.)
0.9996 € *
Available in 5 Days: 6,990 pcs. - if ordered today
Total Price:
5.00 € *
Price list
Quantity
Price per unit*
5 pcs.
0.9996 €
10 pcs.
0.9282 €
25 pcs.
0.8568 €
50 pcs.
0.7854 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 1-104257-0, AMP
Wire-to-Board, Wire & Cable, 11 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: Thermoplastic
- Housing Color: black
- Number of positions: 11
- Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
- Insulation Resistance: 5000 MΩ
- Centerline (Pitch): 2.54 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| Contact type | socket | |
| Version | socket housing | |
| Rated current | 3 A | |
| Rated voltage | 267 V | |
| Orientation | straight | |
| Type of locking | Yes | |
| Number of rows | 1 | |
| Colour | black | |
| Pin number | 11 pole | |
| Connection | crimp/IDC connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
