1-103957-4 | AMP

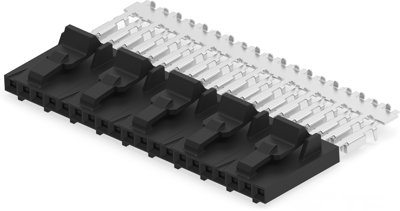

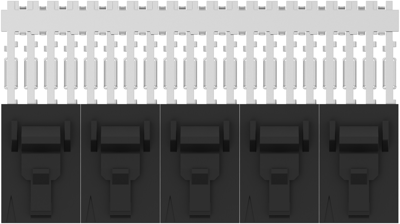

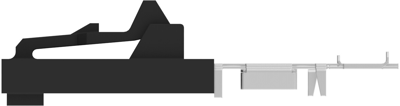

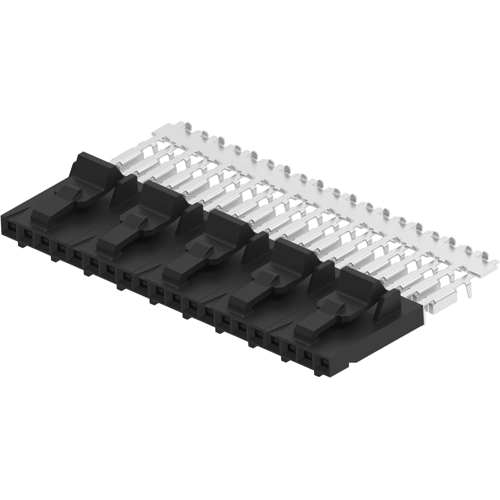

Socket header, 4 pole, pitch 2.54 mm, straight, black, 1-103957-4
Unit Price (€ / pc.)
1.0948 € *
Available in 5 Days: 3,465 pcs. - if ordered today
PCB Connection System, 1-103957-4, AMP
Wire-to-Board, Wire & Cable, 4 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Contact Base Material: Phosphor Bronze
- Housing Material: Thermoplastic
- Housing Color: black
- Number of positions: 4
- Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
- Insulation Resistance: 5000 MΩ
- Centerline (Pitch): 2.54 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection plating | tin-plated | |
| Pin number | 4 pole | |
| Number of rows | 1 | |
| Type of locking | Yes | |
| Colour | black | |
| Rated current | 3 A | |
| contact surface | tin-plated | |
| Connection | crimp/IDC connection | |
| Orientation | straight | |
| Rated voltage | 267 V | |
| Contact type | socket | |
| Grid | 2.54 mm | |
| Version | socket header |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366910 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
