1-102398-1 | AMP

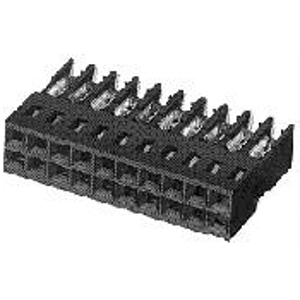

Socket header, 26 pole, pitch 2.54 mm, straight, black, 1-102398-1
Order No.: 37P6746
EAN: 4099889962932
MPN:
1-102398-1
Unit Price (€ / pc.)
15.6604 € *
Standard delivery time from the manufacturer is: 37 Weeks
PCB Connection System, 1-102398-1, AMP
26 AMPMODU MT ASSY DR .100CL, Wire & Cable, 26 Position
Technical Data
- Contact Type: Female
- Contact Base Material: Copper Alloy
- Housing Material: PBT
- Housing Color: black
- Number of positions: 26
- Operating Temperature Range: -65 – 105 °C
- Insulation Resistance: 5000 MΩ
- Centerline (Pitch): 2.54 mm
- Row-to-Row Spacing: 2.54 mm [0.1 in]
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| contact surface | tin-lead | |
| Rated current | 3 A | |
| Grid | 2.54 mm | |
| Connection plating | tin-plated | |
| Pin number | 26 pole | |
| Version | socket header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | IDC connection | |
| Contact type | socket | |
| Number of rows | 2 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | No |
