1-102394-5 | AMP

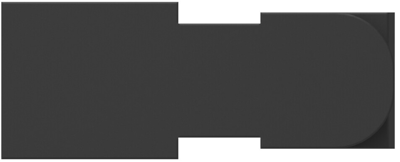

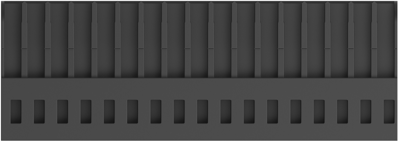

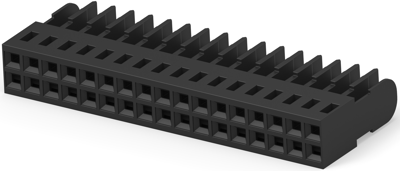

Socket housing, 34 pole, pitch 2.54 mm, straight, black, 1-102394-5
Unit Price (€ / pc.)
3.8318 € *
Available: 0 pcs.
Available in 5 Days: 765 pcs.
Leadtime: 1 Week **
Total Price:
3.83 € *
Price list
Quantity
Price per unit*
25 pcs.
3.8318 €
150 pcs.
3.6176 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 1-102394-5, AMP
34 AMP MODU MT HSG DR .100CL, Wire-to-Board Connector Assemblies & Housings, Thermoplastic, 2.54 mm[.1 in], 34 Position
Technical Data
- Contact Type: Female
- Housing Material: Thermoplastic
- Housing Color: black
- Number of positions: 34
- Operating Temperature Range: -65 – 105 °C
- Insulation Resistance: 5000 MΩ
- Centerline (Pitch): 2.54 mm
- Row-to-Row Spacing: 2.54 mm [0.1 in]
Technical specifications
| Connection | IDC connection | |
| Number of rows | 2 | |
| Version | socket housing | |
| Colour | black | |
| Contact type | socket | |
| Rated voltage | 250 V | |
| Rated current | 3 A | |
| Orientation | straight | |
| Pin number | 34 pole | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
