1-102241-4 | AMP

Socket housing, 16 pole, pitch 2.54 mm, straight, black, 1-102241-4

Order No.: 37P6531
EAN: 4099889962581
MPN:
1-102241-4
Series: AMPMODU

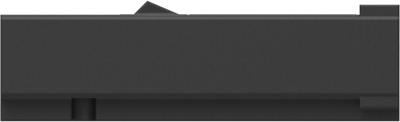

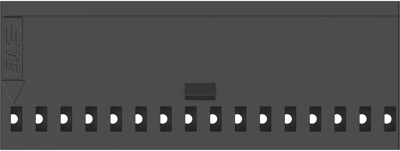

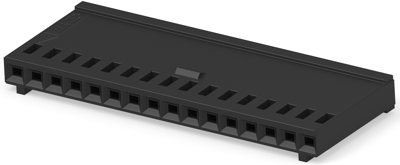

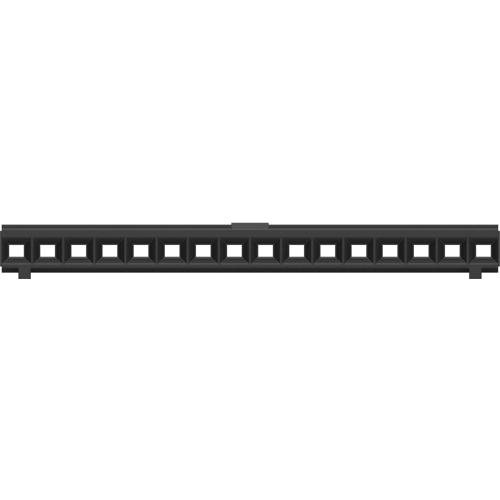

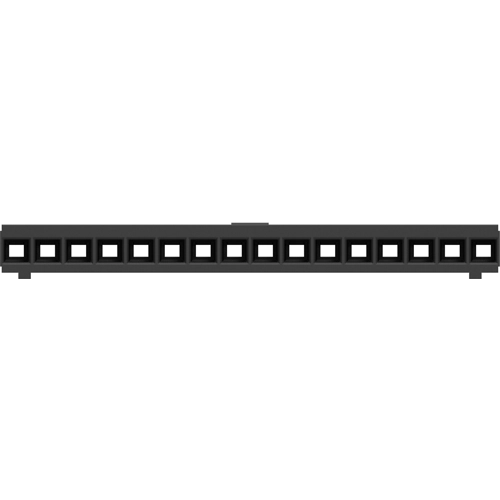

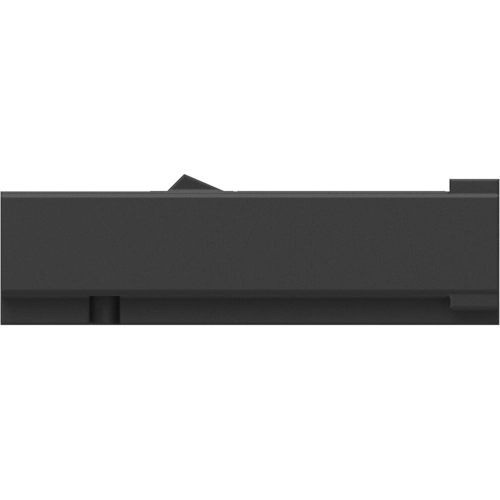

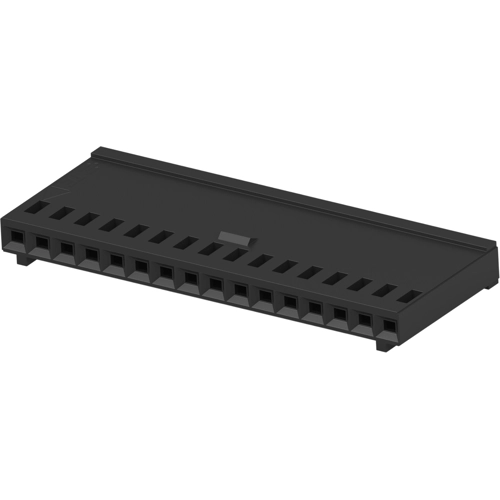

1-102241-4 AMP PCB Connection Systems Image 1
1-102241-4 AMP PCB Connection Systems Image 2
1-102241-4 AMP PCB Connection Systems Image 3
1-102241-4 AMP PCB Connection Systems Image 4
1-102241-4 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.9159 € *
Available in 5 Days: 766 pcs. - if ordered today
Total Price:
1.92 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9159 €
10 pcs.
1.7374 €
50 pcs.
1.5708 €
100 pcs.
1.4161 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1-102241-4, AMP

Wire-to-Board, Wire & Cable, 16 Position

Technical Data

  • Contact Type: Female
  • Contact Base Material: Beryllium Copper
  • Housing Material: Nylon - GF
  • Housing Color: black
  • Number of positions: 16
  • Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
  • Insulation Resistance: 5000 MΩ
  • Centerline (Pitch): 2.54 mm
  • Contact Layout: Inline
Technical specifications
Colour black
Type of locking Yes
Rated current 3 A
Grid 2.54 mm
Pin number 16 pole
Version socket housing
Additional parts unequipped
Orientation straight
Connection crimp connection
Contact type socket
Rated voltage 250 V
Number of rows 1
Logistics
Country of origin US
Customs tariff number 85472000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
