5787013-1 | AMP

Panel socket, 8 pole, solder connection, angled, 5787013-1

Order No.: 36P9068
EAN: 4099889715552
MPN:
5787013-1

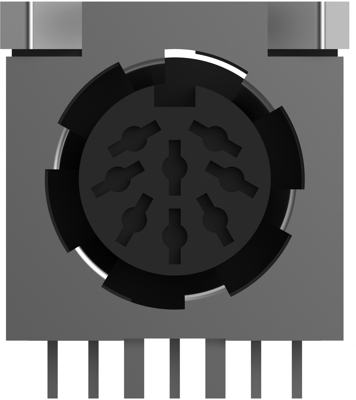

5787013-1 AMP Other Circular Connectors Image 1
5787013-1 AMP Other Circular Connectors Image 2
5787013-1 AMP Other Circular Connectors Image 3
Image may differ
Unit Price (€ / pc.)
8.4966 € *
Standard delivery time from the manufacturer is: 19 Weeks
Total Price:
3,058.78 € *
*incl. VAT plus shipping costs
Subject to prior sale
360 pcs.
8.4966 €

DIN Connector, 5787013-1, AMP

ESD Protection: Without, Circular DIN Connector Type: Circular DIN, Connector & Housing Type: Receptacle, Connector System: Wire-to-Board, Sealable: No, Stacked: No, Number of Positions: 8, Connector Contact Load Condition: Selectively Loaded, PCB Mount Orientation: Right Angle, Hot Pluggable: No, Operating Voltage: 250 VAC, Shield Underplate Thickness: 1.27 µm, Shield Plating Material: Nickel, Contact Base Material: Brass, Contact Current Rating (Max): 7.5 A, Contact Mating Area Plating Material: Tin, Termination Method to Printed Circuit Board: Through Hole - Solder, Panel Mount Feature: Without, Mating Alignment: With, Mating Alignment Type: Keyed, PCB Mount Retention: With, PCB Mount Retention Type: Kinked Legs, Centerline (Pitch): 2.49 mm, Housing Material: Nylon, Height: 20.83 mm, Operating Temperature Range: -55 – 105 °C, Circuit Application: Signal, Agency/Standard: CSA,UL, Packaging Method: Carton, Comment: For applications requiring a 3-position connector, use a 5-position connector (contact positions 4 and 5 not used).

Technical specifications
Filter Property Value
contact surface tin-plated
Assembly PCB mounting
Contact connection solder connection
Pin number 8 pole
Version DIN panel socket
Additional parts equipped
Shell Material PA
Orientation angled
Logistics
Property Value
Country of origin MX
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
