5749264-1 | AMP

Panel socket, 4 pole, solder connection, angled, 5749264-1

Order No.: 36P9498
EAN: 4099889715613
MPN:
5749264-1

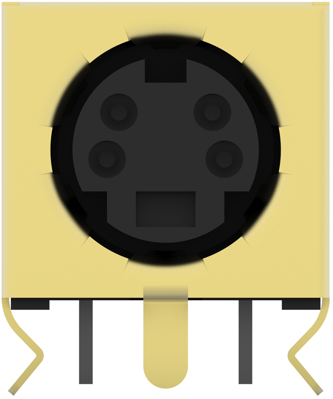

5749264-1 AMP Other Circular Connectors Image 1
5749264-1 AMP Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
5.4502 € *
Available in 5 Days: 1,351 pcs. - if ordered today
Total Price:
5.45 € *
Price list
Quantity
Price per unit*
1 pcs.
5.4502 €
10 pcs.
5.0575 €
25 pcs.
4.7243 €
50 pcs.
4.2959 €
*incl. VAT plus shipping costs
Subject to prior sale

DIN Connector, 5749264-1, TE Connectivity

ESD Protection: Without, Circular DIN Connector Type: Mini DIN, Connector & Housing Type: Receptacle, Connector System: Wire-to-Board, Sealable: No, Stacked: No, Number of Positions: 4, Connector Contact Load Condition: Fully Loaded, PCB Mount Orientation: Right Angle, Operating Voltage: 30 VAC, Panel Grounding: Without, Shield Plating Material: Tin, Contact Base Material: Copper Alloy, Contact Current Rating (Max): 0.5 A, Contact Mating Area Plating Material: Gold, Termination Method to Printed Circuit Board: Through Hole - Solder, Panel Mount Feature Type: Screw Nut, Mating Alignment: With, Mating Alignment Type: Polarization, PCB Mount Retention: Without, PCB Mount Retention Type: Hold-Down Post, Centerline (Pitch): 6.5 mm, Housing Material: Thermoplastic, Height: 12.83 mm, Temperature Rating: High, Operating Temperature Range: -55 – 105 °C, Circuit Application: Signal, Agency/Standard: CSA,UL, Packaging Method: Tube

Technical specifications
Filter Property Value
contact surface gold-plated
Assembly PCB mounting
Contact connection solder connection
Pin number 4 pole
Version DIN panel socket
Additional parts equipped
Shell Material thermoplastic
Orientation angled
Logistics
Property Value
Country of origin NL
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
