5749231-1 | AMP

Panel socket, 6 pole, solder connection, angled, 5749231-1

Order No.: 36P9504
EAN: 4099889715668
MPN:
5749231-1

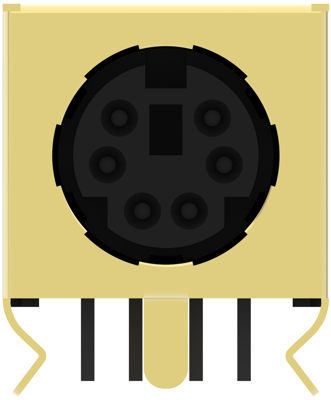

5749231-1 AMP Other Circular Connectors Image 1
5749231-1 AMP Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
5.5335 € *
Available in 5 Days: 8,787 pcs. - if ordered today
Total Price:
5.53 € *
Price list
Quantity
Price per unit*
1 pcs.
5.5335 €
10 pcs.
5.0813 €
50 pcs.
4.5815 €
100 pcs.
4.1174 €
*incl. VAT plus shipping costs
Subject to prior sale

DIN Connector, 5749231-1, TE Connectivity

ESD Protection: Without, Circular DIN Connector Type: Mini DIN, Connector & Housing Type: Receptacle, Connector System: Wire-to-Board, Sealable: No, Stacked: No, Number of Positions: 6, Connector Contact Load Condition: Fully Loaded, PCB Mount Orientation: Right Angle, Operating Voltage: 30 VAC, Panel Grounding: With, Shield Plating Material: Tin over Nickel, Contact Base Material: Copper Alloy, Contact Current Rating (Max): 0.5 A, Contact Mating Area Plating Material: Gold Flash, Termination Method to Printed Circuit Board: Through Hole - Solder, Panel Mount Feature Type: Screw Nut, Mating Alignment: With, Mating Alignment Type: Keyed, PCB Mount Retention: With, PCB Mount Retention Type: Kinked Legs, Centerline (Pitch): 6.5 mm, Housing Material: Thermoplastic, Height: 13 mm, Temperature Rating: High, Operating Temperature Range: -55 – 105 °C, Circuit Application: Signal, Agency/Standard: CSA,UL, Packaging Method: Tube

Technical specifications
contact surface gold-plated
Assembly PCB mounting
Contact connection solder connection
Pin number 6 pole
Version DIN panel socket
Additional parts equipped
Shell Material thermoplastic
Orientation angled
Logistics
Country of origin HU
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
