207486-2 | AMP

Plug housing, 16 pole, crimp connection, snap lock, straight, 207486-2

Order No.: 38P3108
EAN: 4099889719505
MPN:
207486-2
Series: CPC Series

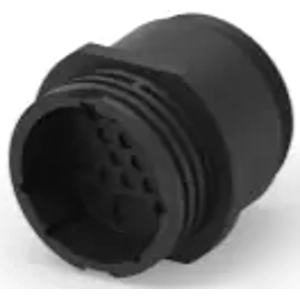

207486-2 AMP Other Circular Connectors Image 1
207486-2 AMP Other Circular Connectors Image 2
207486-2 AMP Other Circular Connectors Image 3
Image may differ
Unit Price (€ / pc.)
7.8302 € *
Standard delivery time from the manufacturer is: 24 Weeks
Total Price:
3,429.63 € *
*incl. VAT plus shipping costs
Subject to prior sale
438 pcs.
7.8302 €

Socket housing, 207486-2, TE Connectivity

Connector Product Type: Housing, Connector System: Wire-to-Wire, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Connector & Housing Type: Receptacle, Reverse Numbering: Without, Number of Positions: 16, Number of Power Positions: 4, Number of Signal Positions: 12, Operating Voltage: 600 VDC, Operating Voltage: 600 VAC, Reverse Gender: No, Contact Type: Pin, Contact Protection: With, Termination Method to Wire & Cable: Crimp, Screw & Hole Thread Size: 1-3/8 - 18 UNEF-2A, Connector Mounting Type: Cable Mount (Free-Hanging), Mating Alignment: With, Mating Retention: With, Panel Mount Feature: Without, Body Orientation: Straight, Housing Color: Black, Housing Material: PA 6.6 GF, Circular Connector Shell Size: 23, Signal Conductor Insulation Diameter: 3.81 mm, Operating Temperature Range: -55 – 105 °C, Fluid Resistance: None, Circuit Application: Power & Signal, Shielded: No, UL Flammability Rating: UL 94V-0, VDE Tested: No, Packaging Method: Standard, Packaging Quantity: 1, For Use With: Type XII Male And Multimate Pin Contact

Technical specifications
Type of locking snap lock
Assembly cable assembly
Contact connection crimp connection
Pin number 16 pole
Version plug housing
Shell Material PA
Orientation straight
Logistics
Country of origin TW
Customs tariff number 85472000
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
