206438-1 | AMP

Socket housing, 57 pole, crimp connection, snap lock, straight, 206438-1

Order No.: 38P3072
EAN: 4099889719215
MPN:
206438-1
Series: CPC Series

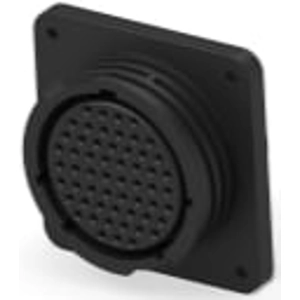

206438-1 AMP Other Circular Connectors Image 1
206438-1 AMP Other Circular Connectors Image 2
206438-1 AMP Other Circular Connectors Image 3
Image may differ
Unit Price (€ / pc.)
29.2502 € *
Standard delivery time from the manufacturer is: 28 Weeks
Total Price:
29.25 € *
Price list
Quantity
Price per unit*
1 pcs.
29.2502 €
10 pcs.
26.9059 €
25 pcs.
24.2165 €
50 pcs.
21.8008 €
*incl. VAT plus shipping costs
Subject to prior sale

Circular power connector, 206438-1, AMP

Connector Product Type: Housing, Connector System: Wire-to-Panel, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Connector & Housing Type: Receptacle, Reverse Numbering: Without, Number of Positions: 57, Number of Power Positions: 0, Number of Signal Positions: 57, Operating Voltage: 250 VDC, Operating Voltage: 250 VAC, Reverse Gender: Yes, Contact Type: Socket, Contact Current Rating (Max): 7.5 A, Contact Protection: With, Screw & Hole Thread Size: 1-3/8 - 18 UNEF-2A, Connector Mounting Type: Panel Mount, Mating Alignment: With, Mating Retention: With, Panel Mount Feature: With, Body Orientation: Straight, Housing Color: Black, Housing Material: Thermoplastic, Circular Connector Shell Size: 23, Accepts Wire Insulation Diameter Range: 1.73 mm, Operating Temperature Range: -55 – 105 °C, Fluid Resistance: None, Circuit Application: Signal, Shielded: No, UL Flammability Rating: UL 94V-0, VDE Tested: No, Packaging Method: Bag, Packaging Quantity: 100

Technical specifications
Type of locking snap lock
Assembly PCB mounting
Contact connection crimp connection
Pin number 57 pole
Version socket housing
Shell Material thermoplastic
Orientation straight
Logistics
Country of origin TW
Customs tariff number 85472000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
