206426-1 | AMP

Plug housing, 3 pole, crimp connection, screw locking, straight, 206426-1

Order No.: 38P3094
EAN: 4099889719369
MPN:
206426-1
Series: CPC Series

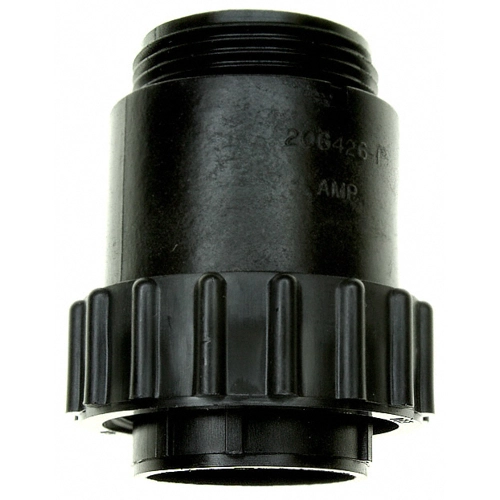

206426-1 AMP Other Circular Connectors Image 1
206426-1 AMP Other Circular Connectors Image 2
206426-1 AMP Other Circular Connectors Image 3
Image may differ
Unit Price (€ / pc.)
12.9115 € *
Available: 4 pcs.
Available in 5 Days: 2,982 pcs. - if ordered today
Total Price:
12.91 € *
Price list
Quantity
Price per unit*
1 pcs.
12.9115 €
10 pcs.
11.9833 €
25 pcs.
11.1860 €
50 pcs.
10.1745 €
*incl. VAT plus shipping costs
Subject to prior sale

Plug housing, 206426-1, Amp

The 206426-1 is a plug assembly with a shell size from 17.

Features

  • Contact cavities identified by characters
  • Front and rear faces of connector
  • Accepts 3 type Xll pin contacts
Technical specifications
Filter Property Value
Contact connection crimp connection
Orientation straight
Cable diameter 5.59 mm
Assembly cable assembly
Version plug housing
Shell Material PA
Additional parts equipped
Type of locking screw locking
Pin number 3 pole
Logistics
Property Value
Customs tariff number 85472000
Country of origin TW
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
