206306-1 | AMP

Socket housing, 37 pole, crimp connection, screw locking, straight, 206306-1

Order No.: 38P2815
EAN: 4099889717877
MPN:
206306-1
Series: CPC Series
206306-1 AMP Other Circular Connectors Image 1
206306-1 AMP Other Circular Connectors Image 2
206306-1 AMP Other Circular Connectors Image 3
Image may differ
Unit Price (€ / pc.)
8.6513 € *
Available in 5 Days: 145 pcs. - if ordered today
Total Price:
8.65 € *
Price list
Quantity
Price per unit*
1 pcs.
8.6513 €
10 pcs.
7.9611 €
50 pcs.
7.1638 €
100 pcs.
6.4498 €
*incl. VAT plus shipping costs
Subject to prior sale

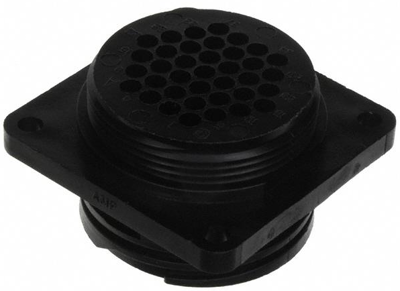

Socket housing, 206306-1, Amp

The 206306-1 is a receptacle housing with a shell size from 23.

Features

  • Polyamide
  • Contact cavities identified by characters
  • Front and rear faces of connector
  • Accepts 37 multimate socket contacts
Technical specifications
Type of locking screw locking
Assembly PCB mounting
Contact connection crimp connection
Pin number 37 pole
Version socket housing
Additional parts equipped
Shell Material PA
Orientation straight
Logistics
Country of origin TW
Customs tariff number 85472000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
