206127-1 | AMP

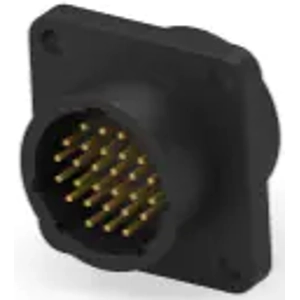

Plug housing, 28 pole, crimp connection, straight, 206127-1

Order No.: 38P3076
EAN: 4099889719246
MPN:
206127-1
Series: CPC Series
206127-1 AMP Other Circular Connectors Image 1
206127-1 AMP Other Circular Connectors Image 2
206127-1 AMP Other Circular Connectors Image 3
Image may differ
Unit Price (€ / pc.)
444.4174 € *
Standard delivery time from the manufacturer is: 29 Weeks
Total Price:
444.42 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
444.4174 €

Connector Assembly, 206127-1, TE Connectivity

Connector Product Type: Connector Assembly, Connector System: Wire-to-Panel, Sealable: No, Connector & Housing Type: Receptacle, Circular Connector Shell Type: All Plastic, Number of Positions: 28, Number of Power Positions: 0, Number of Signal Positions: 28, Operating Voltage: 250 VDC, Operating Voltage: 250 VAC, Reverse Gender: No, Contact Type: Pin, Contact Current Rating (Max): 7.5 A, Contact Protection: With, Panel Mount Feature Type: Flange with Mounting Holes, Connector Mounting Type: Panel Mount, Mating Alignment: With, Mating Retention: With, Panel Mount Feature: With, Housing Color: Black, Housing Material: Thermoplastic, Circular Connector Shell Size: 17, Assembly Length: 26.42 mm, Operating Temperature Range: -55 – 105 °C, Fluid Resistance: None, Circuit Application: Signal, Shielded: No, UL Flammability Rating: UL 94V-0, Packaging Method: Bag, Packaging Quantity: 24

Technical specifications
contact surface gold-plated
Assembly PCB mounting
Contact connection crimp connection
Pin number 28 pole
Version plug housing
Shell Material thermoplastic
Orientation straight
Logistics
Country of origin TW
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
