182645-1 | AMP

Plug housing, 9 pole, crimp connection, screw locking, straight, 182645-1

Order No.: 38P2796
EAN: 4099889717709
MPN:
182645-1
Series: CPC Series

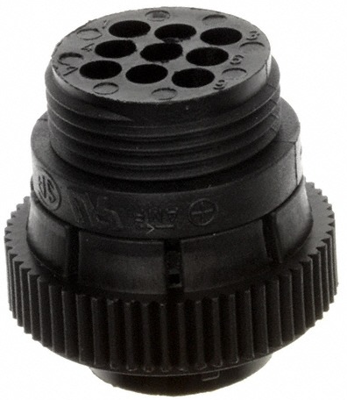

182645-1 AMP Other Circular Connectors Image 1
182645-1 AMP Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
8.9012 € *
Available: 34 pcs.
Available in 5 Days: 3,825 pcs. - if ordered today
Total Price:
8.90 € *
Price list
Quantity
Price per unit*
1 pcs.
8.9012 €
10 pcs.
8.1872 €
50 pcs.
7.4494 €
100 pcs.
6.7116 €
*incl. VAT plus shipping costs
Subject to prior sale

Plug housing, 182645-1, Amp

The 182645-1 is a plug assembly for socket contacts with a shell size from 13 to 9.

Features

  • Thermoplastic
  • Front and rear faces of connector
  • Contact cavities identified by characters
Technical specifications
Filter Property Value
Additional parts unequipped
Orientation straight
Pin number 9 pole
Shell Material thermoplastic
Assembly cable assembly
Type of locking screw locking
Contact connection crimp connection
Version plug housing
Logistics
Property Value
Customs tariff number 85472000
Country of origin GB
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
