1658998-1 | AMP

Panel socket, 8 pole, solder connection, angled, 1658998-1

Order No.: 36P9508
EAN: 4099889715682
MPN:
1658998-1

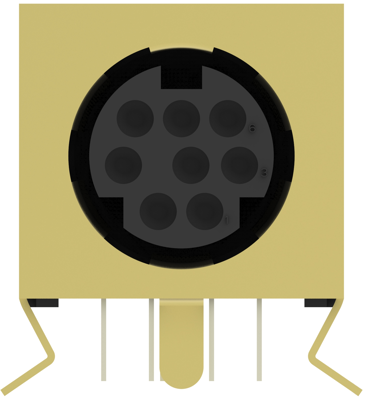

1658998-1 AMP Other Circular Connectors Image 1
1658998-1 AMP Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
5.6763 € *
Available in 5 Days: 376 pcs. - if ordered today
Total Price:
5.68 € *
Price list
Quantity
Price per unit*
1 pcs.
5.6763 €
10 pcs.
5.2241 €
50 pcs.
4.7005 €
100 pcs.
4.2364 €
*incl. VAT plus shipping costs
Subject to prior sale

DIN Connector, 1658998-1, AMP

ESD Protection: Without, Circular DIN Connector Type: Mini DIN, Connector & Housing Type: Receptacle, Connector System: Wire-to-Board, Sealable: No, Stacked: No, Number of Positions: 8, Connector Contact Load Condition: Fully Loaded, PCB Mount Orientation: Right Angle, Operating Voltage: 30 VAC, Panel Grounding: Without, Shield Plating Material: Tin over Nickel, Contact Base Material: Copper Alloy, Contact Current Rating (Max): .5 A, Contact Mating Area Plating Material: Gold, Termination Method to Printed Circuit Board: Through Hole - Solder, Panel Mount Feature Type: Screw Nut, Mating Alignment: With, Mating Alignment Type: Keyed, PCB Mount Retention: With, PCB Mount Retention Type: Kinked Legs, Centerline (Pitch): 6.5 mm, Housing Material: Polyester, Height: 13 mm, Temperature Rating: High, Operating Temperature Range: -55 – 105 °C, Circuit Application: Signal, Agency/Standard: CSA,UL, Packaging Method: Tube

Technical specifications
Pin number 8 pole
contact surface gold-plated
Contact connection solder connection
Assembly PCB mounting
Orientation angled
Version DIN panel socket
Additional parts equipped
Shell Material polyester
Logistics
Customs tariff number 85366990
Country of origin CN
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
