1445510-3 | AMP

Socket housing, 3 pole, crimp connection, bayonet locking, straight, 1445510-3

Order No.: 60F053
MPN:
1445510-3
Series: CPC Series

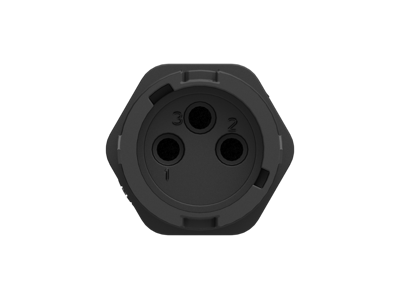

1445510-3 AMP Other Circular Connectors Image 1

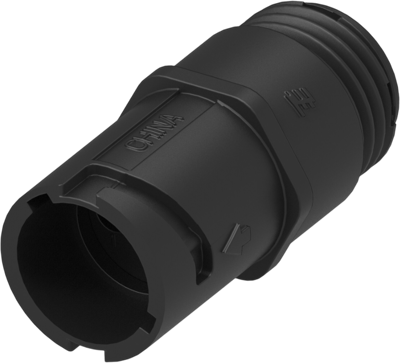

1445510-3 AMP Other Circular Connectors Image 2

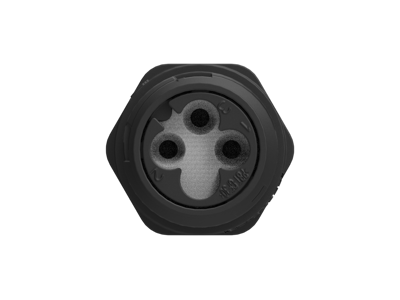

1445510-3 AMP Other Circular Connectors Image 3

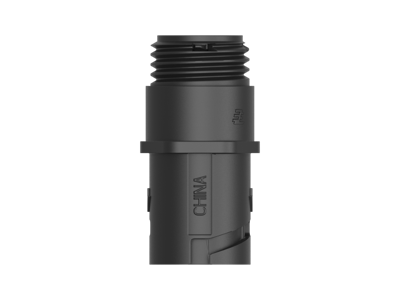

1445510-3 AMP Other Circular Connectors Image 4

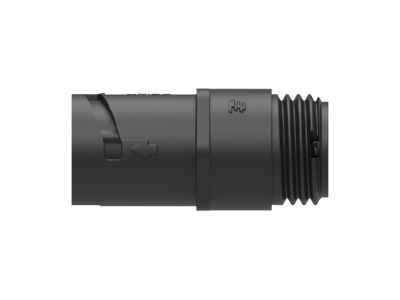

1445510-3 AMP Other Circular Connectors Image 5
Image may differ
Unit Price (€ / pc.)
14.4347 € *
Available in 5 Days: 839 pcs. - if ordered today
Total Price:
14.43 € *
Price list
Quantity
Price per unit*
1 pcs.
14.4347 €
10 pcs.
13.4351 €
25 pcs.
12.3522 €
50 pcs.
11.4954 €
*incl. VAT plus shipping costs
Subject to prior sale

Socket housing, 1445510-3, AMP

3 Position Circular Power Connector, Housing, 250 VDC, 30 - 18 AWG, 0.0509 - 0.823 mm² Wire, Wire-to-Wire, sealable.

Technical specifications
Additional parts unequipped
Pin number 3 pole
Cable cross-section 0.051-0.823 mm²
Assembly cable assembly
Shell Material thermoplastic
Cable diameter 1.5 to 2.39 mm
Type of locking bayonet locking
Contact connection crimp connection
Version socket housing
Orientation straight
Logistics
Country of origin CN
Customs tariff number 85389099
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
