1-796375-2 | AMP

Panel socket, 9 pole, solder connection, angled, 1-796375-2

Order No.: 38P2996
EAN: 4099889718843
MPN:
1-796375-2
Series: CPC Series

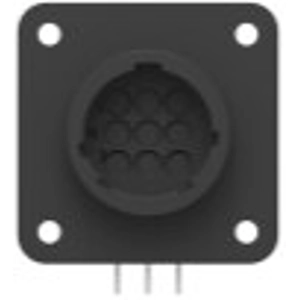

1-796375-2 AMP Other Circular Connectors Image 1
1-796375-2 AMP Other Circular Connectors Image 2
1-796375-2 AMP Other Circular Connectors Image 3
1-796375-2 AMP Other Circular Connectors Image 4
Image may differ
Unit Price (€ / pc.)
35.8071 € *
Standard delivery time from the manufacturer is: 27 Weeks
Total Price:
4,583.31 € *
*incl. VAT plus shipping costs
Subject to prior sale
128 pcs.
35.8071 €

Circular power connector, 1-796375-2, AMP

Connector Product Type: Connector Assembly, Connector System: Wire-to-Board,Wire-to-Panel, Sealable: No, Connector & Housing Type: Receptacle, Circular Connector Shell Type: All Plastic, Number of Positions: 9, Number of Power Positions: 0, Number of Signal Positions: 9, Operating Voltage: 250 VDC, Operating Voltage: 250 VAC, Reverse Gender: No, Contact Type: Pin, Termination Method to Printed Circuit Board: Through Hole - Solder, Panel Mount Feature Type: Flange with Threaded Inserts, Connector Mounting Type: Panel Mount, Mating Alignment: With, Mating Retention: With, Panel Mount Feature: With, Housing Color: Black, Housing Material: PA 6.6, Circular Connector Shell Size: 13, Operating Temperature Range: -55 – 105 °C, Fluid Resistance: None, Circuit Application: Signal, Shielded: No, UL Flammability Rating: UL 94V-0, Packaging Method: Tray, Packaging Quantity: 16

Technical specifications
Filter Property Value
Pin number 9 pole
Orientation angled
Assembly PCB mounting
Contact connection solder connection
contact surface gold-plated
Version panel socket
Shell Material PA
Logistics
Property Value
Country of origin CN
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
