5569984-2 | AMP

Socket, RJ11, 2 pole, 6P2C, Cat 3, solder connection, through hole, 5569984-2

Order No.: 37P3189
EAN: 4099889820898
MPN:
5569984-2

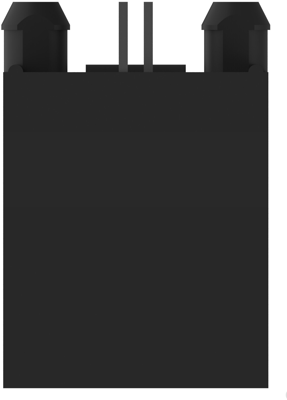

5569984-2 AMP Modular Connectors Image 1

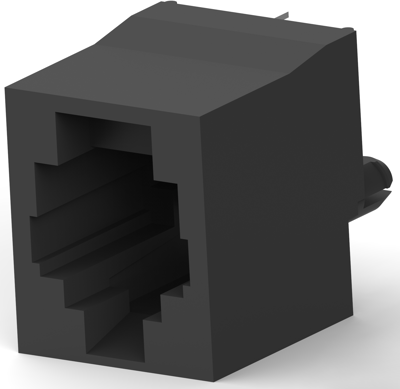

5569984-2 AMP Modular Connectors Image 2

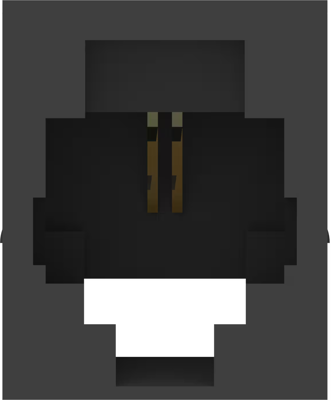

5569984-2 AMP Modular Connectors Image 3

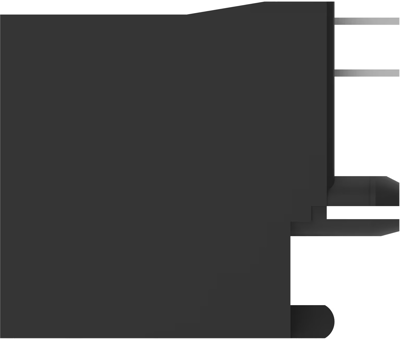

5569984-2 AMP Modular Connectors Image 4

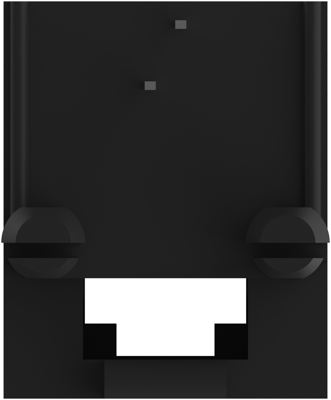

5569984-2 AMP Modular Connectors Image 5
Image may differ
Unit Price (€ / pc.)
1.8564 € *
Available in 5 Days: 201,436 pcs. - if ordered today
Total Price:
1.86 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8564 €
10 pcs.
1.7255 €
25 pcs.
1.6065 €
50 pcs.
1.4637 €
*incl. VAT plus shipping costs
Subject to prior sale

RJ11 connector, 5569984-2, AMP

Grounding options: None, Modular jacks & plugs products: RJ type jacks & plugs, Modular connector style: Jack, Connector system: Cable-to-board, Cable-to-Panel, Connector & Contact Terminates To: Printed Circuit Board, Status indicator type: None, Port configuration: Single port, Port matrix configuration: 1x1, Connector contact density: Standard, PCB mount orientation: Right Angle, Connector profile: Standard, Modular jack latch orientation: Standard - latch down, Contactunderplating material: Nickel, Contact base material: Phosphor bronze, Contact mating area plating material: Gold, Contact mating area plating material thickness: PCB contact termination area plating material: Tin, Termination method to printed circuit board: Through hole - solder, Panel mount feature: With, Connector mounting type: Board mount, Mating entry location: Top, Housing color: Black, Housing material: High temperature nylon, Centerline (Pitch): 1.02 mm, PCB thickness (recommended): 1.57 mm, Operating temperature range: -40-85 °C, Shielded: No, Circuit application: Signal, UL flammability rating: UL 94V-0, Performance category: Cat 3, Packaging method: Box & Tray, Package, Tray, Packaging quantity: 176

Technical specifications
Filter Property Value
RJ-Version RJ11
Connection solder connection
Additional parts equipped
Pin number 2 pole
Pole image 6P2C
Category Cat 3
Assembly through hole
Version socket
Logistics
Property Value
Country of origin DK
Customs tariff number 85366930
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
