5569262-1 | AMP
Socket, RJ45, 8 pole, 8P8C, Cat 5, solder connection, PCB mounting, 5569262-1
Order No.: 73F6744
EAN: 4099889823769
MPN:
5569262-1
0-5569262-1
Unit Price (€ / pc.)
32.0705 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
32.07 € *
Price list
Quantity
Price per unit*
1 pcs.
32.0705 €
5 pcs.
30.4045 €
10 pcs.
28.4410 €
25 pcs.
25.9301 €
*incl. VAT plus shipping costs
Subject to prior sale

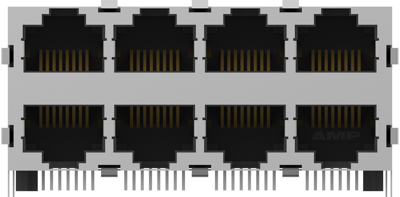

Multi-port modular receptacle housing, 5569262-1, AMP
Dual row, with RJ45 8/8 panel jacks, shielded with additional ground connection; Housing: high-temperature nylon, black, according to UL 94 V-0. Contacts: gold-plated phosphor bronze over nickel primer, tinned solder area. Operating current: max. 1.5 A (25 °C). Operating voltage: max. 150 VAC. Test voltage: 1000 VAC. Insulation resistance: at least 500 Mohm. Shielding attenuation: at least 20 dB at 10 to 200 MHz. Useful life: 750 insertion/removal cycles.
Technical attributes (type, number of 8/8 jacks): 0-5569262-1, 2x4 jacks.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| RJ-Version | RJ45 | |
| Version | socket | |
| Pole image | 8P8C | |
| Additional parts | equipped | |
| Pin number | 8 pole | |
| Category | Cat 5 | |
| Assembly | PCB mounting | |
| Connection | solder connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
