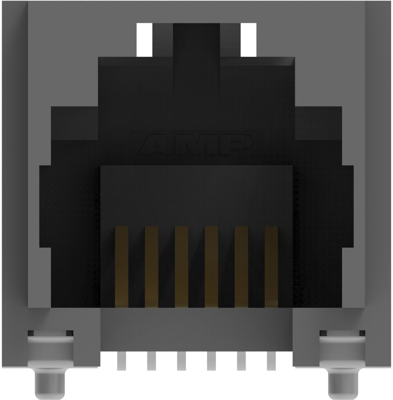

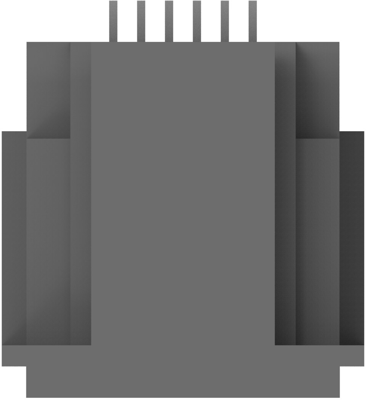

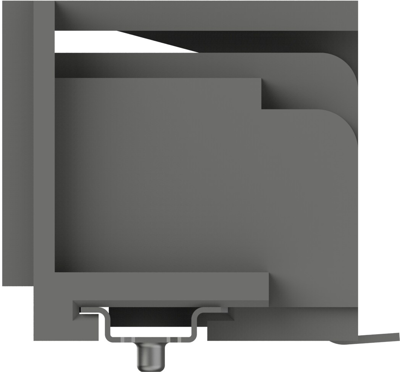

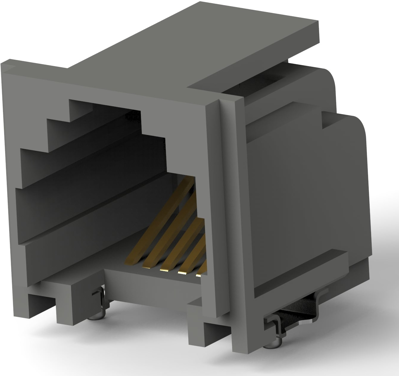

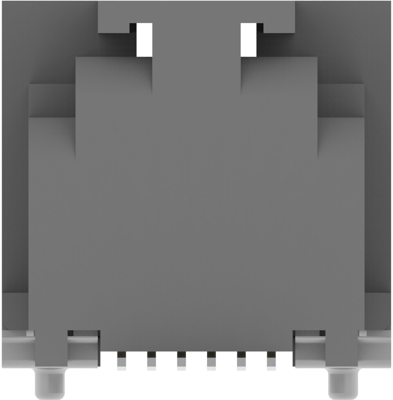

RJ25 connector, 5406514-1, TE Connectivity
Connector product type: Connector assembly, Modular jacks & plugs products: RJ type jacks & plugs, Modular connector style: Jack, Connector system: Cable-to-board, Grounding options: None, Status indicator type: None, Port configuration: Single port, Port matrix configuration: 1x1, Connector contact density: Standard, PCB mount orientation: Right Angle, Connector profile: Low, Modular jack latch orientation: Inverted - Latch Up, Contactunderplating material: Nickel, Contact base material: Copper Alloy, Contact mating area plating material: Gold, Contact current rating (Max): 1.5 A, PCB contact termination area plating material: Tin, Termination method to printed circuit board: Surface mount, Mating alignment: Without, Connector mounting type: Board mount, Panel mount feature: With, Mating entry location: Side, Housing color: Gray, Housing material: High Temperature Thermoplastic, Centerline (Pitch): 1.02 mm, Connector height: 12.95 mm, PCB thickness (recommended): 1.6 mm, Operating temperature range: -40-70 °C, Shielded: No, Circuit application: Signal, Performance category: Cat 3, UL flammability rating: UL 94V-0, Packaging method: Tape mounted on reel, Packaging quantity: 600, Comment: Inward boardlocks
