2-406549-1 | AMP

Socket, RJ45, 8 pole, 8P8C, Cat 5, solder connection, PCB mounting, 2-406549-1

Order No.: 73F6730
EAN: 4099889823752
MPN:
2-406549-1
2-0406549-1

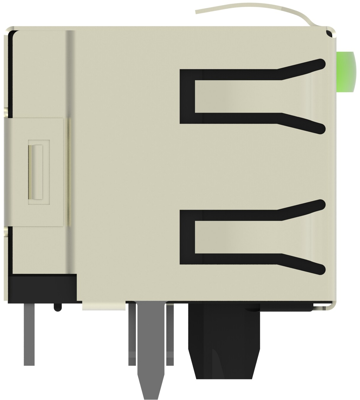

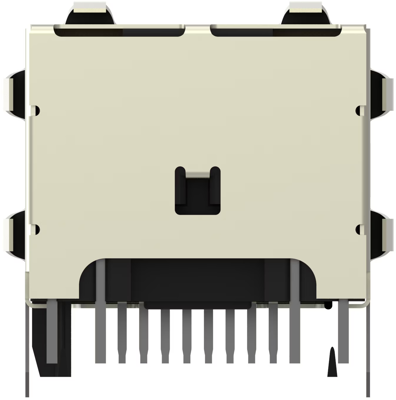

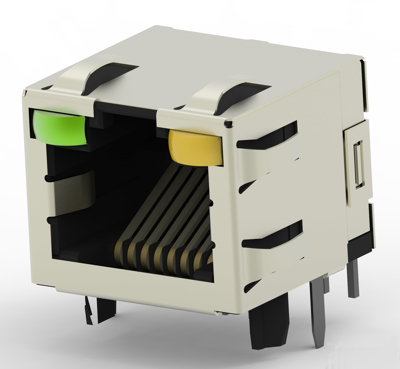

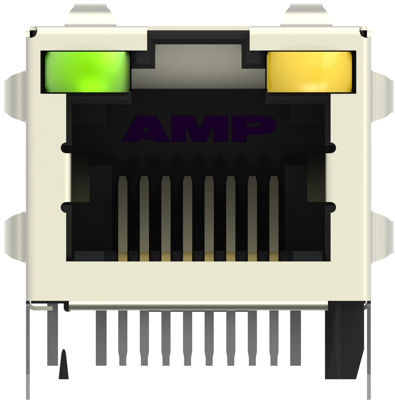

2-406549-1 AMP Modular Connectors Image 1
2-406549-1 AMP Modular Connectors Image 2
2-406549-1 AMP Modular Connectors Image 3
2-406549-1 AMP Modular Connectors Image 4
2-406549-1 AMP Modular Connectors Image 5
Image may differ
Unit Price (€ / pc.)
5.6525 € *
Available: 77 pcs.
Available in 5 Days: 4,491 pcs. - if ordered today
Total Price:
5.65 € *
Price list
Quantity
Price per unit*
1 pcs.
5.6525 €
10 pcs.
5.2479 €
25 pcs.
4.9028 €
50 pcs.
4.4506 €
*incl. VAT plus shipping costs
Subject to prior sale

Standard modular receptacle housing, 2-406549-1, AMP

4-positions, for PCB mounting, with side entry, with housing stop; Reduced overall height: 11.5 mm.

With 8 poles and LED, type 2-0406549-1.

Side entry, shielded with ground connection.

Technical attributes (type, contacts): 2-0406549-1, 8 contacts.

Technical specifications
Filter Property Value
Assembly PCB mounting
Pin number 8 pole
Version socket
RJ-Version RJ45
Category Cat 5
Pole image 8P8C
Connection solder connection
Additional parts equipped
Logistics
Property Value
Country of origin ES
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
