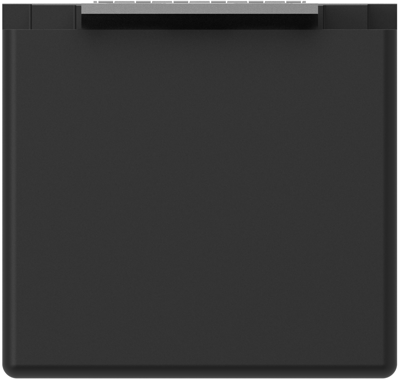

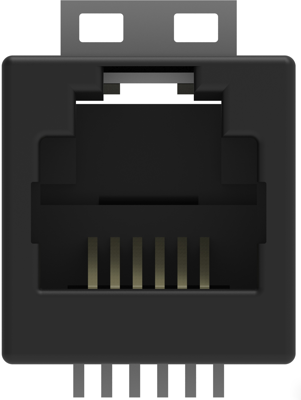

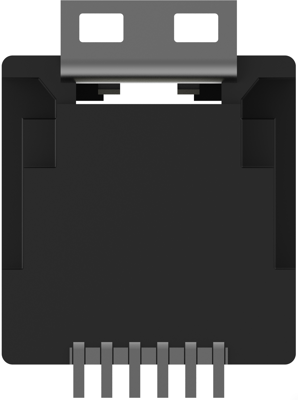

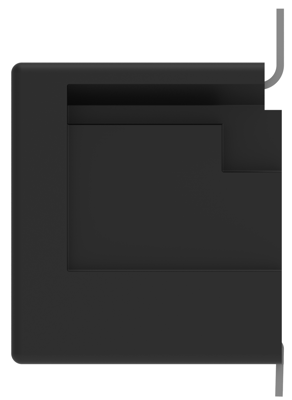

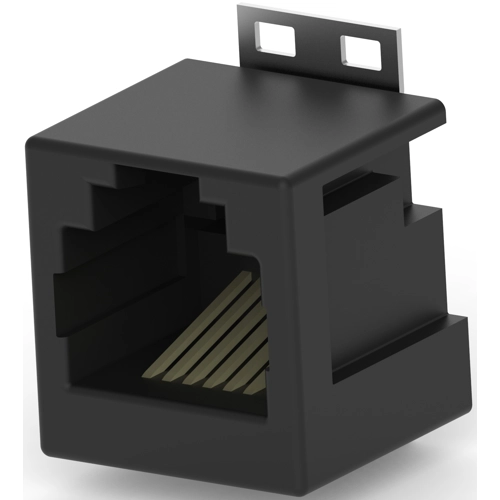

RJ25 connector, 1857381-1, AMP
Connector product type: Connector assembly, Modular jacks & plugs products: RJ type jacks & plugs, Modular connector style: Jack, Connector system: Cable-to-board, Grounding options: None, Status indicator type: None, Port configuration: Single port, Port matrix configuration: 1x1, Connector contact density: Standard, PCB mount orientation: Vertical, Connector profile: Standard, Modular jack latch orientation: Standard - latch down, Contactunderplating material: Nickel, Contact base material: Phosphor bronze, Contact mating area plating material: Gold Flash over Palladium Nickel, Contact current rating (Max): 1.5 A, PCB contact termination area plating material: Tin, Termination method to printed circuit board: Surface mount, Mating alignment: Without, Connector mounting type: Board mount, Panel mount feature: Without, Mating entry location: Top, Housing color: Black, Housing material: PA 9T GF, Centerline (Pitch): 1.02 mm, Connector height: 12.7 mm, PCB thickness (recommended): 1.57 mm, Operating temperature range: -40-70 °C, Shielded: No, Circuit application: Signal, Performance category: Cat 3, UL flammability rating: UL 94V-0, Packaging reel diameter: 36 cm, Packaging method: Reel, Tape & Reel, Packaging quantity: 2100, Comment: Embossed tape according to EIA 481-3. Surface can be used for application by Type II SMD Machine. This Invertible Modular Jack can also be applied hanging through a hole in the PC Board. (See PCB Layout)
