1-406541-1 | AMP

Socket, RJ45, 8 pole, 8P8C, Cat 5, solder connection, through hole, 1-406541-1

Order No.: 37P1348
EAN: 4099889819427
MPN:
1-406541-1

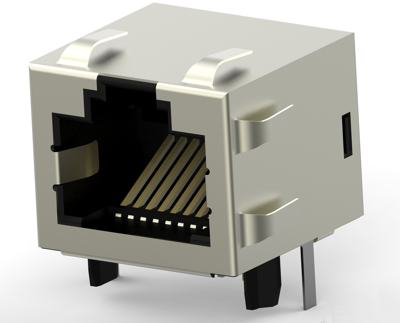

1-406541-1 AMP Modular Connectors Image 1

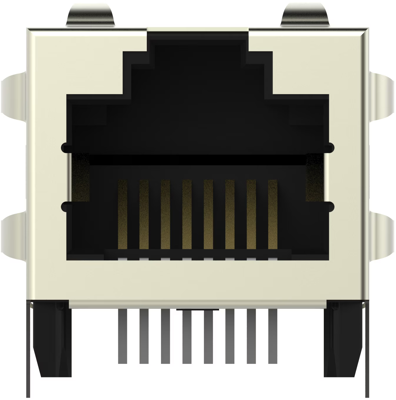

1-406541-1 AMP Modular Connectors Image 2

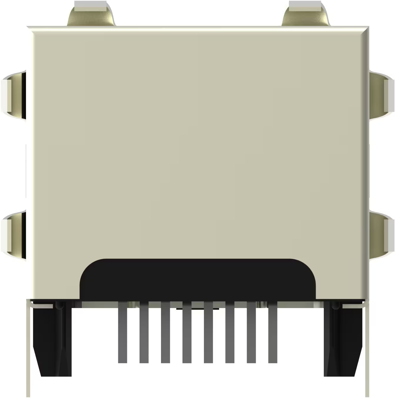

1-406541-1 AMP Modular Connectors Image 3

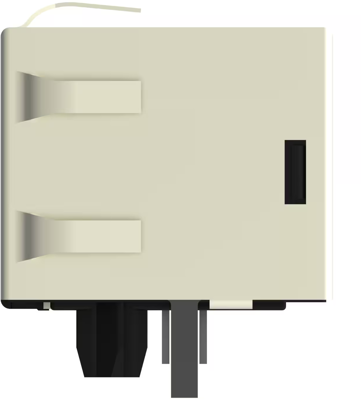

1-406541-1 AMP Modular Connectors Image 4

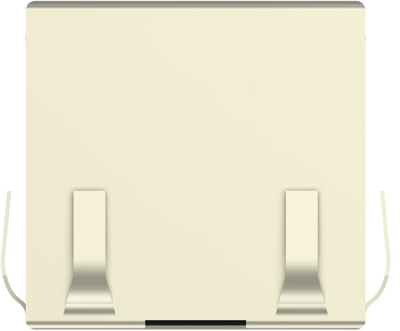

1-406541-1 AMP Modular Connectors Image 5
Image may differ
Unit Price (€ / pc.)
3.9389 € *
Available: 31 pcs.
Available in 5 Days: 3,973 pcs. - if ordered today
Total Price:
3.94 € *
Price list
Quantity
Price per unit*
1 pcs.
3.9389 €
10 pcs.
3.6533 €
25 pcs.
3.4153 €
50 pcs.
3.1059 €
*incl. VAT plus shipping costs
Subject to prior sale

Modular connector, RJ connector, 1-406541-1, AMP

Connector Assembly, RJ45, Jack, Black, High Temperature Thermoplastic, -40-85 °C, UL 94V-0, Cat 5

Technical Data

  • Modular Connector Style: Jack
  • Connector Contact Density: Standard
  • Port Matrix Configuration: 1x1
  • Contact base material: Phosphor Bronze
  • Contact Mating Area Plating Material: Gold
  • Panel Mount Feature: Without
  • Shielded: Yes
  • Connector Height: 13.34 mm
  • Centerline (Pitch): 1.02 mm
  • Housing Color: black
Technical specifications
Filter Property Value
Category Cat 5
RJ-Version RJ45
Pole image 8P8C
Version socket
Connection solder connection
Pin number 8 pole
Additional parts equipped
Assembly through hole
Logistics
Property Value
Country of origin US
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
