5050865-5 | AMP
2.26 mm socket, solder connection, 0.52-0.83 mm², 5050865-5
Order No.: 20F2611
EAN: 4099889668001
MPN:
5050865-5
0-5050865-5
Unit Price (€ / pc.)
0.7616 € *
Available: 1,451 pcs.
Available in 5 Days: 38,037 pcs. - if ordered today
Total Price:
3.81 € *
Price list
Quantity
Price per unit*
5 pcs.
0.7616 €
10 pcs.
0.7021 €
25 pcs.
0.6545 €
50 pcs.
0.5950 €
*incl. VAT plus shipping costs
Subject to prior sale
Solder receptacles, 0.33 to 1.65 mm, type TE Connectivity/AMP ..533../..505.
Made of copper, tinned, with closed base, spring made of gold-plated copper beryllium; Collar thickness: 0.36 to 0.56 mm.

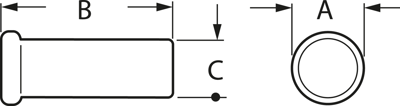

Technical attributes (type, for pin diameter (PD) from/to, dimension A (diameter), dimension B, dimension C (diameter)): 0–5050865–5, PD 0.86/1.04, A 2.26, B 6.6, C 1.78 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contact surface | tin-plated | |
| Version | socket | |
| diameter | 2.26 mm | |
| Cable cross-section | 0.52-0.83 mm² | |
| Touch safe | No | |
| Rated current | 7.5 A | |
| Length | 6.6 mm | |
| Connection | solder connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
