2-5331272-3 | AMP

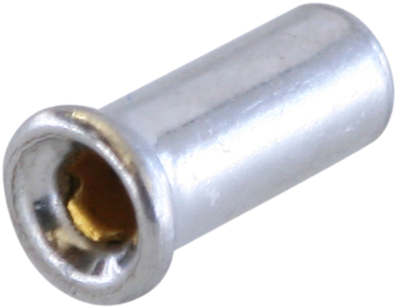

1.78 mm socket, solder connection, 0.16 mm², 2-5331272-3
Order No.: 20F2605
EAN: 4099889667967
MPN:
2-5331272-3
Unit Price (€ / pc.)
0.5712 € *
Available: 35 pcs.
Total Price:
2.86 € *
Price list
Quantity
Price per unit*
5 pcs.
0.5712 €
10 pcs.
0.5236 €
25 pcs.
0.4879 €
50 pcs.
0.4522 €
*incl. VAT plus shipping costs
Subject to prior sale
Solder receptacles, 0.33 to 1.65 mm, type TE Connectivity/AMP ..533../..505.
Made of copper, tinned, with closed base, spring made of gold-plated copper beryllium; Collar thickness: 0.36 to 0.56 mm.

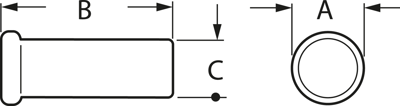

Technical attributes (type, for pin diameter (PD) from/to, dimension A (diameter), dimension B, dimension C (diameter)): 2–5331272–3, PD 0.46/0.53, A 1.78, B 3.5, C 1.27 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contact surface | tin-plated | |
| Version | socket | |
| diameter | 1.78 mm | |
| Cable cross-section | 0.16 mm² | |
| Touch safe | No | |
| Rated current | 5 A | |
| Length | 3.5 mm | |
| Connection | solder connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
