520935-6 | AMP

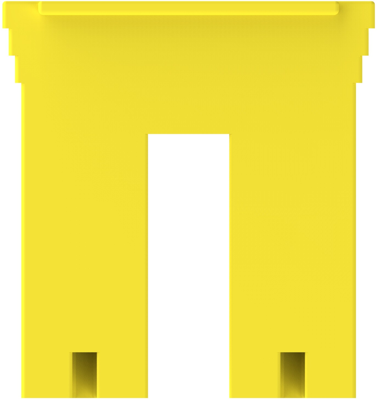

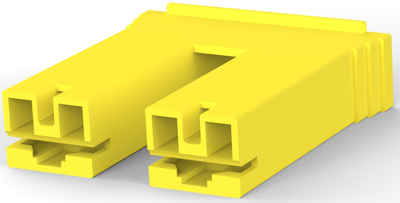

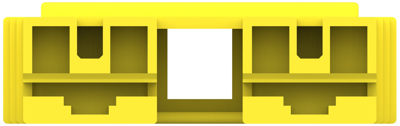

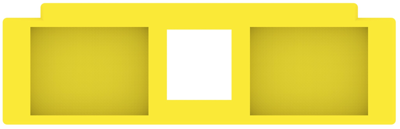

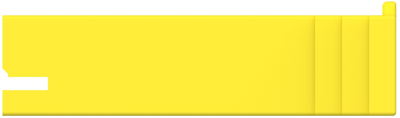

Insulating grommet for 6.35 mm, 2 pole, nylon, UL 94V-2, yellow, 520935-6

default L
front L
side L
back L
top L
default S
front S
side S
back S
top S
Images may differ
Total price
( 0.2142 € * / pcs.)
107.10 €
Availability: 22,045 pcs.
Delivery time: 10 days **
Price per unit*
500 pcs.
0.2142 €
2400 pcs.
0.1904 €
3000 pcs.
0.1749 €
5000 pcs.
0.1261 €
10000 pcs.
0.1047 €
*incl. VAT plus shipping costs
**Subject to prior sale

Product by AMP at Bürklin Elektronik

Receptacle housing, 520935-6, AMP

The 520935-6 is a positive lock receptacle that is specifically designed to provide ease of assembly and secure retention to mating tabs. This product contains holes and is removable only by deflecting an integrally designed depressor prior to withdrawal. The depressor can be deflected manually by thumb pressure, or automatically by a cam inside a specially designed nylon housing.

Aside from reduced insertion force, this positive lock gives the assembler a definite mechanical “snap” when the terminal is correctly seated over the mating tab.


  • Reduced insertion force
  • Locks onto tabs containing holes
  • Housing insulates and serves as a removal tool
Technical specifications
Version UL 94V-2
Colour yellow
For Plug 6.35 mm
Length 27.43 mm
Material nylon
Pin number 2 pole
Show similar products (0)
Country of origin US
Customs tariff number 85389099
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
