1-174712-7 | AMP

Insulating grommet for 4.75 mm, 2 pole, PA, UL 94V-0, red, 1-174712-7

Order No.: 71P0827
EAN: 4099891598174
MPN:
1-174712-7

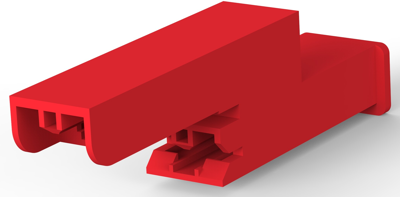

1-174712-7 AMP Insulating Sleeves Image 1

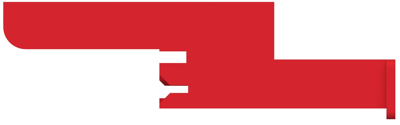

1-174712-7 AMP Insulating Sleeves Image 2

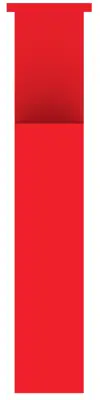

1-174712-7 AMP Insulating Sleeves Image 3

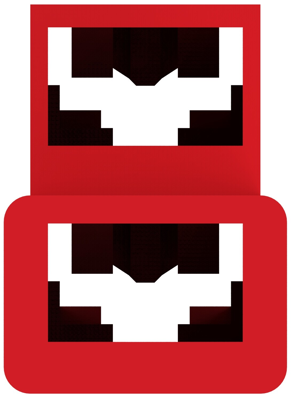

1-174712-7 AMP Insulating Sleeves Image 4
1-174712-7 AMP Insulating Sleeves Image 5
Image may differ
Unit Price (€ / pc.)
0.1607 € *
Available in 5 Days: 19,930 pcs. - if ordered today
Total Price:
160.65 € *
*incl. VAT plus shipping costs
Subject to prior sale
1000 pcs.
0.1607 €

Positive lock receptacle, 1-174712-7, AMP

The 1-174712-7 is a positive lock receptacle that is specifically designed to provide ease of assembly and secure retention to mating tabs. This product contains holes and is removable only by deflecting an integrally designed depressor prior to withdrawal. The depressor can be deflected manually by thumb pressure, or automatically by a cam inside a specially designed nylon housing.

Aside from reduced insertion force, this positive lock gives the assembler a definite mechanical “snap” when the terminal is correctly seated over the mating tab.

Features

  • Reduced insertion force
  • Locks onto tabs containing holes
  • Housing insulates and serves as a removal tool
Technical specifications
Filter Property Value
For Plug 4.75 mm
Pin number 2 pole
Material PA
Colour red
Length 26.3 mm
Version UL 94V-0
Logistics
Property Value
Country of origin CN
Customs tariff number 85389099
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
